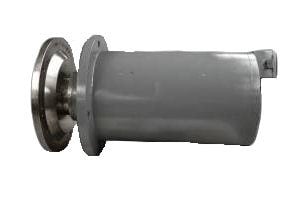

The Whitnon Speedfam spindle is grease lubricated stator driven, and capable of running up to 1,450 rpm.



CHALLENGE

The field failed incoming tests on this Whitnon Speedfam spindle.  Once the housing was removed, the field looked as though it was smashed, broken wires were exposed.  The bearings were heavily contaminated with a dark brown sludge. Both the front and rear shoulders and the OD pilot face had high run out.  Lastly, the rear housing was severely egged and out of ISO.  No dimensional deviations were noted for this repair.



SOLUTION

The following actions were performed on this Whitnon Speedfam spindle:

  • Clean, inspect overall dimensions
  • Replace bearings, o-rings, and assembly screws
  • Kiss grind the front and rear shoulders
  • Grind, chrome plate, and finish grind the rear housing
  • Rewind the field
  • Clean up the customer supplied wheel hub



RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
