Read MoreHowa MSN-500H-VC Spindle Repair

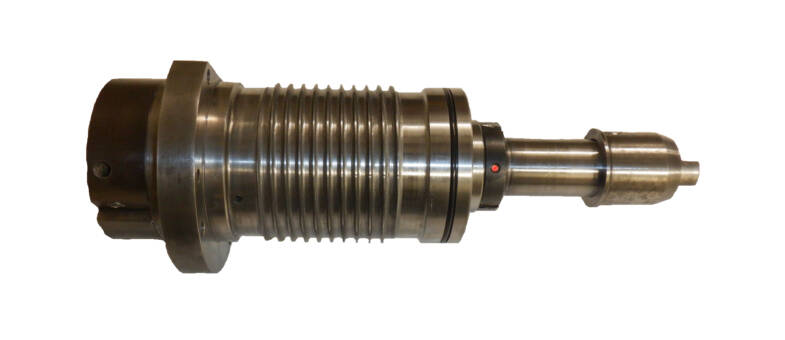

The Howa MSN-500H-VC is a CNC vertical machining center. It can come equipped with this grease lubricated and coupling driven spindle capable of running up to 12,000RPM.
CHALLENGE
Our customer sent in this Howa MSN-500H-VC spindle for taper repair and the drawbar stopped working. Once the spindle arrived at Northland Tool we completed a full disassembly and evaluation.
This is what we found:
- Spindle rotated freely but the bearings felt worn when spun by hand
- Draw bar pulled low force at 300lbs
- Bearings were contaminated with coolant and the grease was aged and deteriorated
- ID 30 taper had high run out and bell mouth contact
- Front shoulder had high run out
SOLUTION
The following actions were performed on this Howa MSN-500H-VC spindle:
- Clean, inspect overall dimensions
- Replace bolts, o-rings, bearings, bellevilles, and gripper balls
- Grind-Plate-Grind ID 30 taper due to high run out and bell mouth contact
- Kiss Grind front bearing shoulder due to high run out
RESULT
After reassembly of all components and adjusting bearing preload this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
