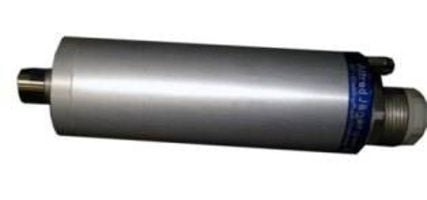

Jager 42-2 FS Spindle Repair

Jager 42-2 FS Spindle Repair



CHALLENGE

When this Jager 42-2 FS spindle arrived at Northland Tool and Electronics we performed a full breakdown and evaluation.  Upon inspection, we found that the bearings had failed due to contamination.  There were no dimensional deviations found on this spindle’s critical surfaces (bearing journals, housing, taper, etc.).

SOLUTION

The following actions were performed on this Jager 42-2 FS spindle:

  • Cleaned and inspected overall dimensions
  • Replace all bolts and o-rings
  • Replace bearings



RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
