Okuma MX50HB Spindle Repair

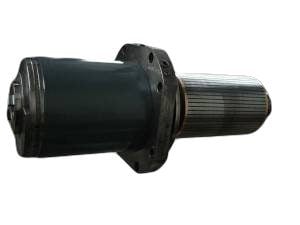

The Okuma MX50HB is a CNC horizontal machining center with a built in dual pallet changer. It can come fitted with a grease lubricated spindle that is capable of running up to 5,000 rpm.

CHALLENGE

This Okuma MX50HB spindle was seized incoming. Upon full breaking down and evaluating the spindle, we noted that all the grease was washed out of the bearings and they were locked up tight. Both roller bearings were contaminated and worn. We then measured the critical dimensions (bearing journals, housing, taper, etc.) and found a couple of issues. First, both the middle roller taper and rotor taper had 7 microns of runout. Lastly, the ID of the 50 taper had 20+ microns of runout. No other dimensional deviations were noted for this repair.

SOLUTION

The following actions were performed on this Okuma MX50HB spindle:

Clean, inspect overall dimensions
Replace all bearings, bolts, and O-rings
Kiss grind roller taper
Kiss grind rotor taper
Kiss grind the ID of the 50 taper

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
