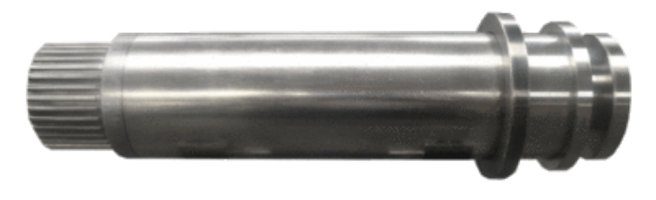

Renaud 175-060196 Spindle Repair

The Renaud 175-060196 is a grease lubricated and belt driven spindle capable of running up to 8,000 rpm.

CHALLENGE

The bearings in this tool grinding spindle felt very rough when rotated by hand in assembly incoming. Coolant contamination was found throughout the spindle interior, which caused failure of both the front and rear bearing pairs. An additional factor was that the spring pack was covered with sticky coolant residue which prevented it from providing the proper bearing preload. The drive pulley was found to be very loose on the rear pulley journal of the shaft. Operation of the spindle with the loose fit had resulted in fretting and corrosion of the pulley journal OD. We observed no other significant dimensional deviations in the tooling pilot, on the bearing journals/ shoulders, or in the housing bores.

SOLUTION

We performed a grind, chrome plate, and finish grind of the OD pulley journal. When all components had been thoroughly cleaned, we reassembled the spindle with new bearings, setting the proper preload, and replaced the assembly screws.

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Front bearings
Contaminated front bearings

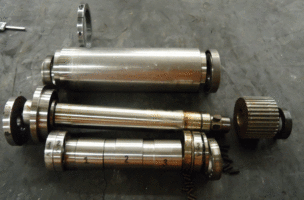

Spindle disassembled waiting for evaluation for scope of work
