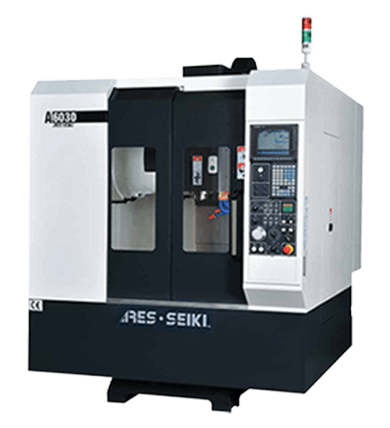

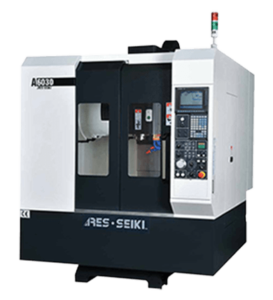

The Ares Seiki A-6030 is a CNC tapping center that comes standard with a direct coupled spindle capable of 10,000 rpm and a BT30 tooling taper.

Ares Seiki A-6030 Spindle Repair



CHALLENGE

When we received this spindle for evaluation, the bearings sounded noisy when rotated by hand.
Upon inspection, our technician noted that the entire spindle interior was contaminated with coolant and lubricant. Grease had completely washed out of the front bearing pair and debris from broken cages spread throughout the front of the spindle.Grease in rear bearing pair was partially washed out, but they did not fail. Gripper finger condition looked good.



SOLUTION

This was a straightforward repair with no dimensional work or machining required. The following items were addressed in this repair:

  • Replaced bearings
  • Replace Bellevilles
  • Replace o-rings and assembly screws





RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

  • Ares Seiki A-6030 Spindle Repair

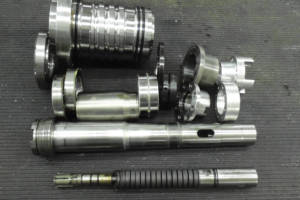

    Shaft parts are ready for cleaning

  • Ares Seiki A-6030 Spindle Repair

    Ball cages in bearings were beginning to break down and scattering debris throughout the spindle interior

  • Ares Seiki A-6030 Spindle Repair

    Outer race of bearing exhibits debris from broken ball cages
