Doosan Puma MX2600ST Spindle Repair

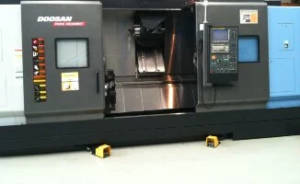

The Doosan Puma MX2600ST is a high performance CNC turning center capable of multi-axis milling/turning. It can come equipped with this 12,000 rpm spindle and capto tooling taper.

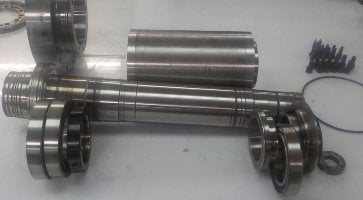

This Doosan Puma MX2600ST spindle was sent in to us due to a hard crash. We completed a full breakdown and evaluation once it arrive at Northland Tool and Electronics. It was determined that the shaft nose was bent 60+ microns due to the crash and the bearings were severely damaged. No dimensional deviations were noted for the repair.
The following actions were performed on this Doosan Puma MX2600ST spindle:
- Clean, inspect overall dimensions
- Replace bearings, o-rings, and assembly screws
- Replace shaft with customer supplied shaft
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
