This spindle had axial end play incoming, indicating a loss of preload. The shaft tooling pilot had very high runout (>36µ) and the pilot face was chipped. Our internal evaluation showed contamination with grinding swarf. Also, the rear ID of the main housing where the ball cage locates was egged & oversized with dings from the balls because the slide fit was so loose.
We completed a grind, chrome plate & finish grind of the spindle shaft to restore the tooling interface to top condition. We also undertook a G/P/G of the rear housing ID to remedy the wear and damage which contributed to the overall failure of this spindle. The spindle was reassembled with new high-speed ceramic bearings, o-rings & assembly screws and then run up and balanced in our test room.
Even though the TSSV has been replaced in the GMN grinding spindle line, we enabled our customer to avoid paying top dollar for the newer model. Their rebuilt spindle with all new internal rolling elements and all critical dimensions restored will perform at peak efficiency.

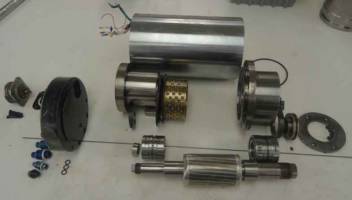

GMN spindle disassembled and ready for cause of failure evaluation.
This stator is encased in resin to help protect it from contamination causing electrical issues.
The ball cage assembly being removed from the rear of the spindle. The ball cage allows axial movement of the shaft caused by heat growth. Without the ball cage the shaft would heat up from normal use, expand and over preload the bearings causing spindle failure.
This is the chip in the front tooling face found during evaluation.
Clogged coolant jacket. We remove all coolant jackets from the main housings and this is a great example of why we do it. No coolant was able to circulate around the stator. The heat generated from the stator will no longer be carried away and will eventually cause the stator windings to deteriorate.
