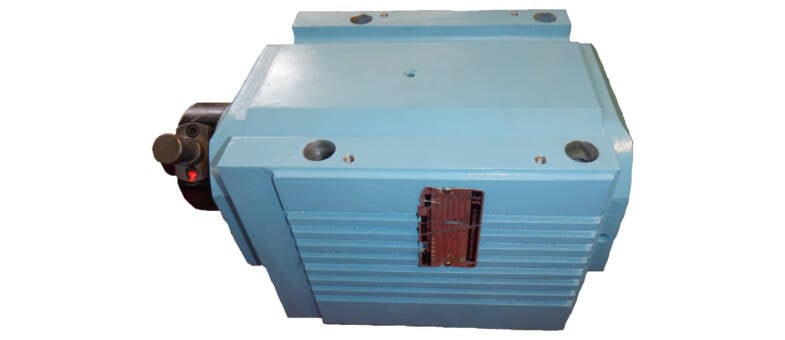

The Heian M8808 is a CNC routing spindle. It is an oil mist lubricated and stator driven spindle capable of running up to 17,000RPM.
CHALLENGE
Our customer sent in this Heian M8808 spindle due to premature tooling failure. Once the spindle arrived at Northland Tool we completed a full disassembly and evaluation.
This is what we found:
- Spindle rotated freely but the bearings felt worn when spun by hand
- Front bearing journal was heavily worn and had high run out
- Front housing was egged at +6µ/-2µ
- Front bearings were brinelled
- Front shaft threads were damaged
- Id collet taper had high run out
SOLUTION
he following actions were performed on this Heian M8808 spindle:
- Clean, inspect overall dimensions
- Replace bolts, o-rings, and bearings
- Grind-Plate-Grind (GPG) front 35mm bearing journal
- GPG front 62mm housing
- Fix damaged front shaft threads
- GPG ID collet taper
RESULT
After reassembly of all components and adjusting bearing preload this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
