Hitachi Seiki CH250 Spindle Repair

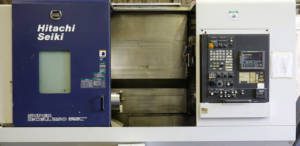

The Hitachi Seiki CH250 is a CNC turning center. It comes equipped with a grease lubricated and stator driven spindle capable of running up to 8,000 rpm.

CHALLENGE

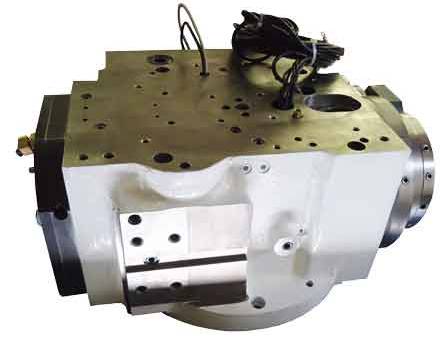

When this Hitachi Seiki CH250 spindle arrived at Northland Tool and Electronics we completed a full breakdown and evaluation. We found a few different issues to be addressed. First, the o-ring for the stator was broken and out of position. Second, the front bearing’s grease was washed out. Third, the drawbar ball cam was damaged from use. We then measured the critical dimensions (bearing journals, housing, taper, etc.) and found two unacceptable deviations. It was noted that the front shaft journal and front housing were out of ISO and the front housing had fretting damage.

SOLUTION

The following actions were performed on this Hitachi Seiki CH250 spindle:

Clean, inspect overall dimensions
Replace bearings, seals, orings, screws and gripper balls
Grind, chrome plate and finish grind (GPG) the front housing
GPG the front shaft journal
Replace rotary union and drawbar cam tip

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
