Mazak Variaxis 730 Spindle Repair

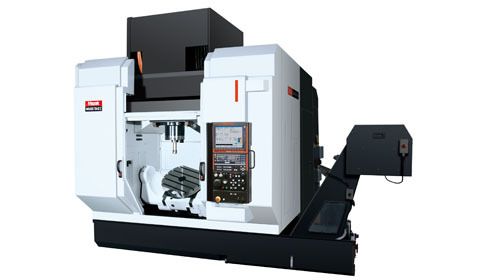

The Mazak VARIAXIS is a highly versatile line of full, simultaneous 5-axis machining centers that perform multiple and complex curved surface machining on large, heavy workpieces in single setups.

CHALLENGE

Upon initial inspection, the spindle felt very rough with loud bearing noise when rotated by hand.
The actuator and rear of spindle were heavily contaminated, and it appeared that the rotary union had been leaking coolant for some time. The rear roller bearing suffered catastrophic failure. Encoder sensor was damaged and the encoder ring showed wear. The actuator and drawbar had rubbed out, and the rear of the drawbar shaft had severe damage. Further inspection uncovered that the #1 and #2 front bearings were heavily contaminated with coolant. The tooling taper was pockmarked with uneven tool contact. Gripper fingers (collet) showed significant wear.

SOLUTION

This spindle rebuild required the following actions:

Grind, chrome plate, finish-grind BIG Plus 50 taper ID
Replace bearings, Bellevilles, oil line, seals, o-rings, and assembly screws
Customer obtained and provided the following OEM parts:
Rotary union, grippers, encoder, encoder ring, upper drawbar shaft, actuator push plate & ferrules

RESULT

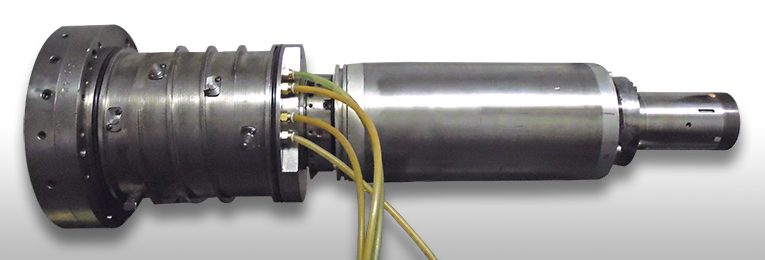

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Tooling taper ID was pockmarked with uneven surface
The rear of spindle showed evidence of coolant leak
Our thorough breakdown and evaluation process includes dismantling every component of the spindle
Worn gripper fingers were replaced with new
Rear roller bearings had failed due to contamination

‹ ›
