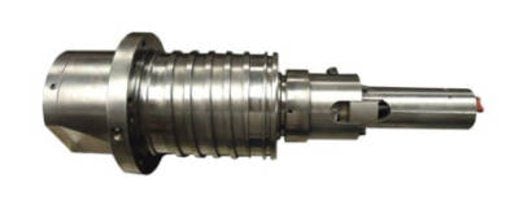

Northland Tool repaired this Mazak VTC-20 spindle for our customer 8 years ago. It started to make some front bearing noise so our customer called us to set up a scheduled repair. With the advanced warning that the spindle was coming in and having the spindle pulled from the machine before additional damage from a failure occured made it possible to complete this repair in a few days. This enabled our long time customer to plan around the machine downtime and not miss deliveries to their customers.
CHALLENGE
Possible cause of failure:
- #1 front bearing failure from contamination
- Shaft taper was out of ISO
- Grippers were worn
SOLUTION
Recommended action:
- Clean, inspect overall dimensions
- Replace bearings, o-rings, and assembly screws
- Kiss grind the shaft taper
- Replace the gripper fingers
RESULT
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
