Niigata SPN50 Spindle Repair

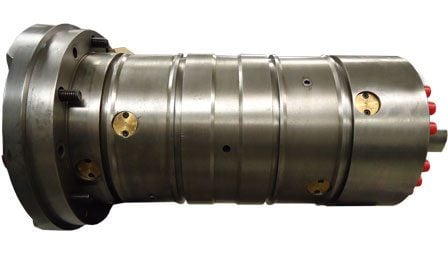

The Niigata SPN-50 is a CNC horizontal machining center. It comes standard with an oil mist lubricated and belt driven spindle capable of running up to 12,000 rpm.
This Niigata SPN50 spindle was sent in to Northland Tool and Electronics because it had suffered a crash. Upon inspection, we found that the drawbar, grippers, and collet were worn. The hydraulic nut was damaged and will need to be replaced. Lastly, the taper measured out of ISO and will need to be ground.
The following actions were performed on this Niigata SPN50 spindle:
- Clean, inspect overall dimensions
- Replace bearings and bellevilles
- Replace drawbar, grippers, and collet
- Manufacture new hydraulic nut
- Kiss grind shaft taper
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
