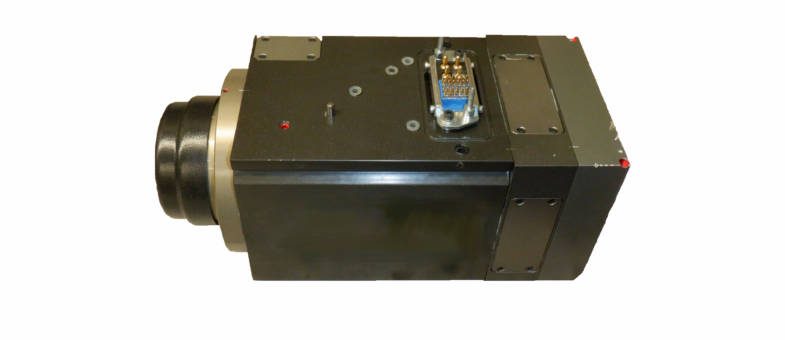

Omlat is a spindle manufacturer that many wood routing machine tool OEM’s use on their machines.  This spindle is grease lubricated and stator driven making it capable of running up to 24,000 RPM.



CHALLENGE

Our customer sent in this Omlat 0.7132.000 spindle stating that the motor kept faulting out.  When it arrived at Northland Tool the spindle was seized.  We bench tested all the proximity sensors and they all passed, one had some damage but passed as well.  During disassembly we noted that the bolts that hold the target wheel to the rear nut sheared and allowed the target wheel to move freely.  Due to this, the zero on the target wheel rubbed against the encoder causing damage.  Lastly, the HSK tooling taper was worn at the mouth and had high run out.

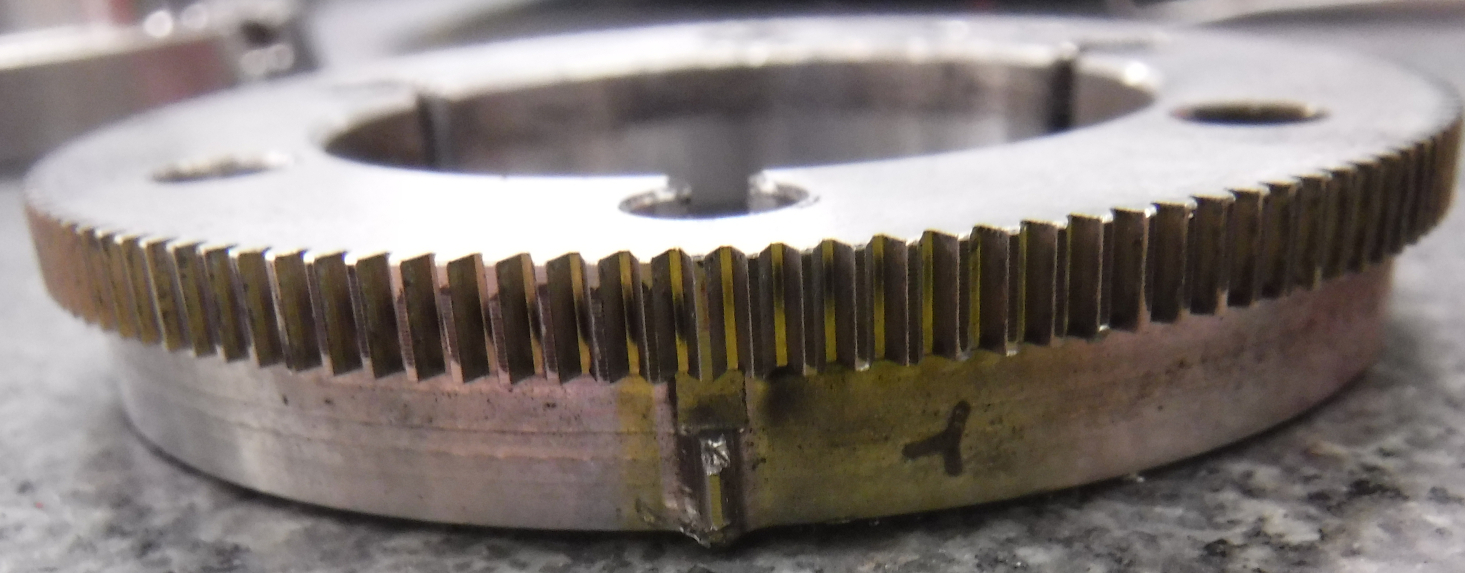

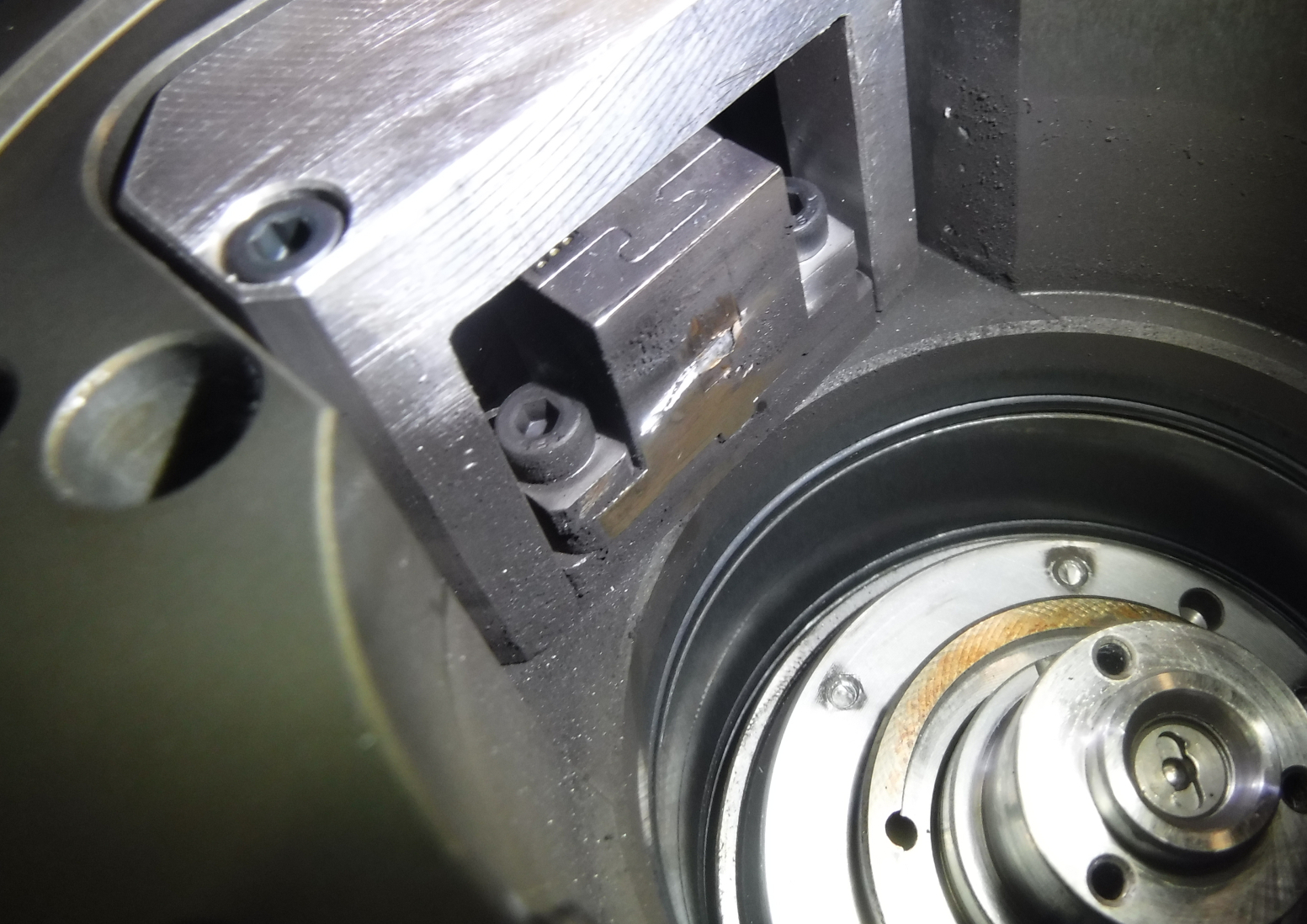

Damaged encoder sensor:                                Damaged target wheel:

Omlat 0.7132.000 Spindle Repair              Omlat 0.7132.000 Spindle Repair



SOLUTION

The following actions were performed on this Omlat 0.7132.000 spindle:

  • Clean, inspect overall dimensions
  • Replace bearings, bolts, o-rings, bellevilles, encoder sensor, and target wheel
  • Repair damage to rear nut
  • Grind, plate, grind (GPG) the HSK tooling taper



RESULT

After reassembly of all components and adjusting bearing preload, we put the spindle through a rigorous break-in and testing procedure to make sure it passes our final quality inspection. See below for the passing test reports:

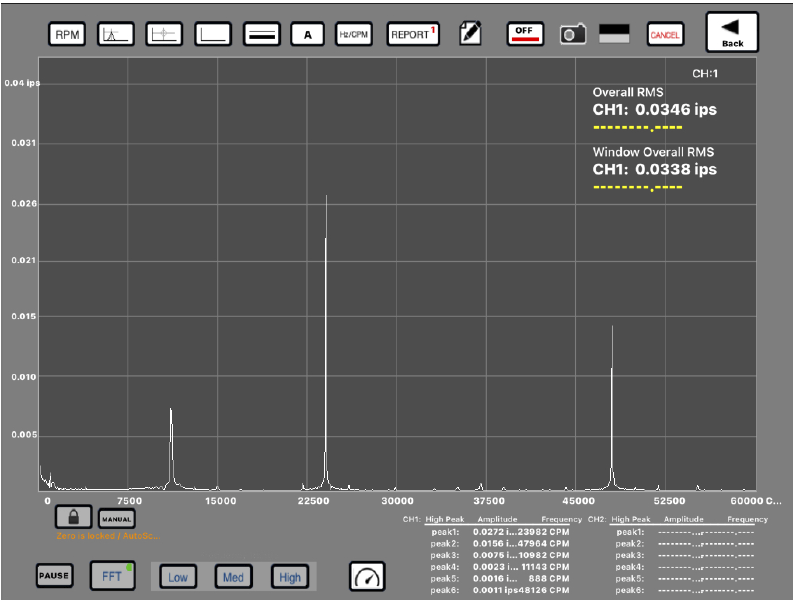

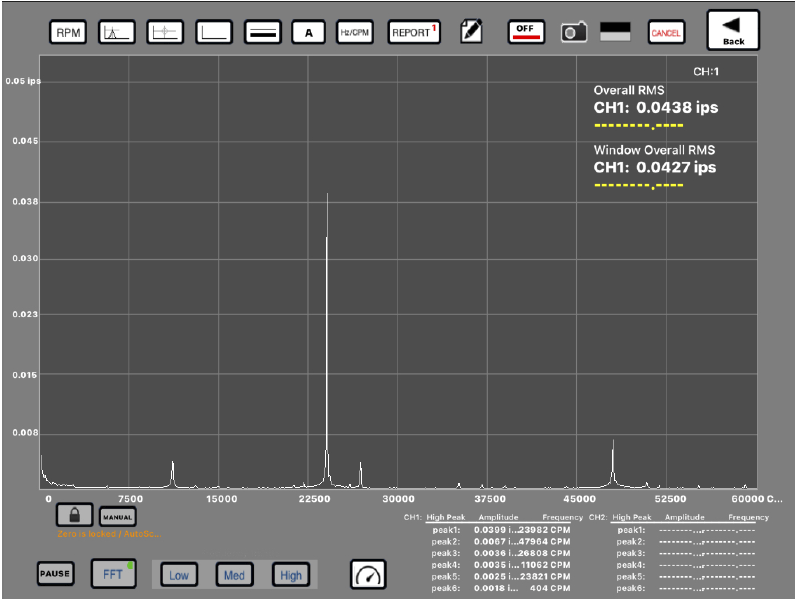

Front Bearings Vibration Analysis Spectrum:                 Rear Bearings Vibration Analysis Spectrum:

Omlat 0.7132.000 Spindle Repair               Omlat 0.7132.000 Spindle Repair

Motor Analyzer Summary:

Omlat 0.7132.000 Spindle Repair

This spindle passed our final quality inspection and was returned to our customer with a 1-year warranty.
