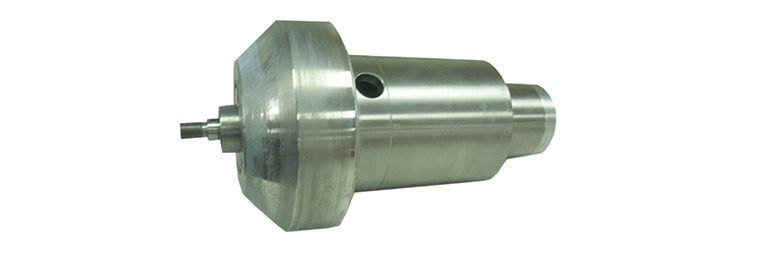

Schneider CCP-103 Spindle Repair

Schneider CCP 103 Spindle Repair

The Schneider CCP 103 machine is used in the ophthalmic industry to polish CR39, Hi-index, Polycarbonate, and Trivex® materials.



CHALLENGE

Optics polishing spindles typically come to us covered in hardened, white polishing slurry. Some minor particulate contamination was discovered in the spindle interior. The graphite piston assembly linkage had excessive play from continued use. Testing of the draw tube actuated smoothly in the ball cage assembly.

SOLUTION

This straightforward basic repair included the following actions:
  • Replace graphite piston & linkage assembly
  • Replace bearings, seals, o-rings and stainless assembly screws
  • Adjust bearing preload, reassemble and break in
  • Pass final quality control inspection

RESULT

Every Northland Tool repair is covered by a comprehensive 1-year warranty.

DETAILED CAUSE OF FAILURE
