Tsugami FMA3 Spindle Repair

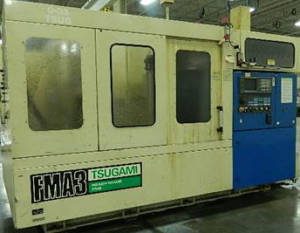

The Tsugami FMA3 is a CNC horizontal machining center. It comes fitted with an oil injected and stator driven spindle capable of running up to 10,000 rpm.

CHALLENGE

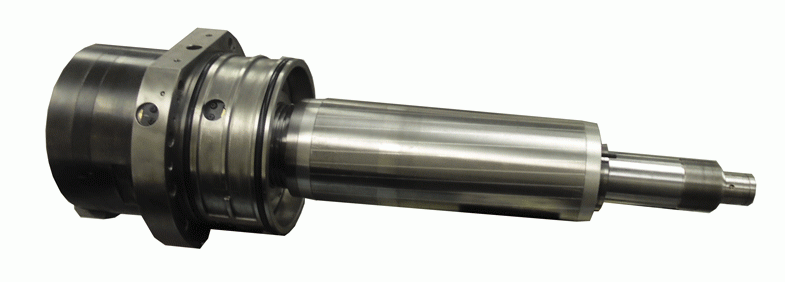

This Tsugami FMA3 spindle arrived at Northland Tool and Electronics for a full breakdown and evaluation. Upon inspection, we noted that the #1 front bearing failed from coolant contamination and the #3 bearing ball cage was melted and broken, possibly from particulate contamination. We measured the critical dimensions and noted that the shaft taper was pock-marked, the shaft rear roller journal was undersized -5/-6µ (ISO is +2/+10µ), and the #1 and #3 oil injectors were damaged. We also noted that the rear mounting tabs were broken off.

SOLUTION

The following actions were performed on this Tsugami FMA3 spindle:

Clean, inspect overall dimensions
Kiss grind shaft taper
Grind, chrome plate, and finish grind the shaft rear roller journal
Replace bearings, #1 and #3 oil injectors, o-rings & screws

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

#3 bearing cage failure. When the cage fails as seen above the rolling elements are no longer separated. This allows them to contact each other causing friction, heat and ultimately spindle failure
Taper damage as seen at incoming inspection
Oil injectors for bearing lubrication
