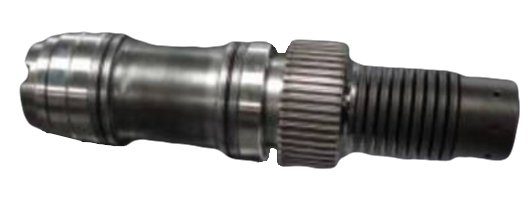

Cincinnati Sabre 1000 Spindle Repair
The Cincinnati Sabre 1000 is a CNC vertical machining center. It comes equipped with a grease lubricated and belt driven spindle capable of running up to 8,000 rpm.
This Cincinnati Sabre 1000 spindle arrived at Northland Tool and Electronics for a full breakdown and evaluation. Upon disassembly of the spindle we noted that the bearings were severely contaminated. We also found that the drawbar and shaft nuts were loose incoming. Lastly, the shaft taper had 8 microns of runout and will need to be ground.
The following actions were performed on this Cincinnati Sabre 1000 spindle:
- Clean all parts of the spindle
- Replace all bolts, o-rings, and bellevilles
- Replace bearings
- Kiss grind the shaft Taper
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
