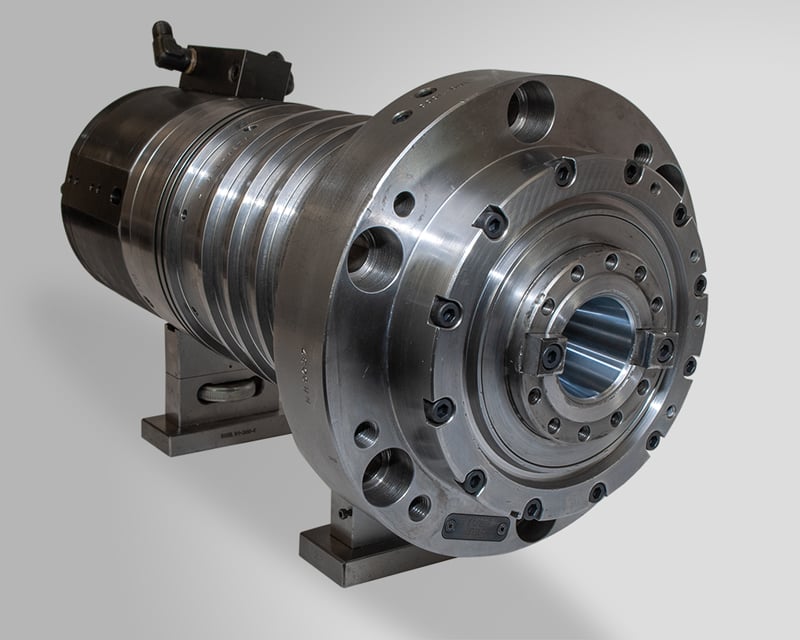

Weiss GHK 176239 Spindle Repair

Catastrophic bearing failure was the main cause of this spindle malfunction

Continue reading to learn how Northland Tool performed this repair and converted a Weiss GHK 176239 spindle from grease-injected to permanent grease lubrication…

weiss-spindle-repair-bearing-failure

CHALLENGE

This spindle showed evidence of being crashed with significant damage to the tooling taper ID, face, and chamfer. The front roller and angular contact bearings were severely contaminated and worn.
Measurement of the front bearing journal shoulder showed high runout. Most of the Belleville washers were cracked, and a drawbar spacer was found to be damaged. The gripper fingers were excessively worn. The actuator had damage to (4) surfaces: adjustment cap face, housing ID shoulder, piston OD shoulder, and chamfer.

SOLUTION

This model of Weiss spindle was manufactured to be grease-injected, which requires costly maintenance of a separate lubrication system. We converted the spindle to permanent grease, which will benefit the user by eliminating these future maintenance costs.

This rebuild included the following actions by NTE repair technicians:

Manufacture & install a new drawbar spacer
Rework damaged actuator surfaces
Grind, chrome plate & finish grind the tooling taper ID
Kiss grind the front journal shoulder
Replace all bearings, Bellevilles, grippers, seals, o-rings & assembly screws
Adjust preload, assemble, balance and break in
Final quality control inspection

RESULT

Every Northland Tool repair is covered by a comprehensive 1-year warranty.

DETAILED CAUSE OF FAILURE

Evidence of where the spindle crashed
Broken Belleville washers needed to be replaced

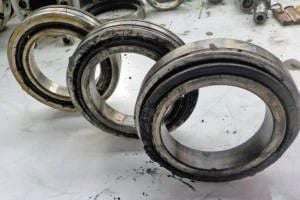

Bearings were severely worn and contaminated
This roller bearing was packed with contaminated lubricant
Gripper fingers were worn and needed to be replaced
A close-up image showing how roller bearings became deformed and broke the outer race

‹ ›
