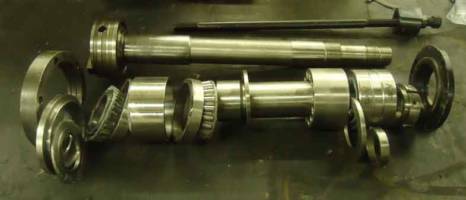

Catastrophic bearing failure was the main cause of this spindle malfunction Continue reading to learn how Northland Tool performed this repair and converted a Weiss GHK 176239 spindle from grease-injected to permanent grease lubrication……Read More

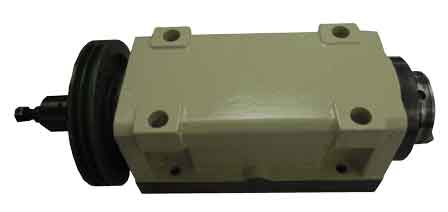

Yamazaki YBH-45 Spindle Repair
Our customer sent us this spindle for repair after their part quality diminished. The bearings were very tight and had noticeable damage when spun by hand. We also noted that an aftermarket speed sensor had been installed on the spindle but not balanced with the spindle assembly. This caused high vibration and ultimately bearing failure.
We manufactured a custom counterweight to offset the speed sensor. Thoroughly cleaned the spindle and assembled it with new bearings.
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
Does your spindle need repair? GET A QUOTE TODAY
More Case Studies
Repair History - Here are examples of similar spindle repairs that may contain additional information that will help you. If you have additional questions, please contact us.
C&M PU2116 Spindle Repair
This C&M PU2116 spindle arrived to our facility completely seized. Upon inspection, we noted that metal pieces from the customer’s machining process had worked their… [...]
Grosite 4S9-06N-8C01 Spindle Repair
This Grosite 4S9-06N-8C01 spindle arrived at Northland Tool and Electronics we noted that the spindle spun free, but had a deep growl to it when… [...]
Motch 220D Spindle Repair
This Motch 220D spindle arrived at Northland Tool and Electronics for a full breakdown and evaluation. Upon inspection, we noted that the spindle was completely… [...]
