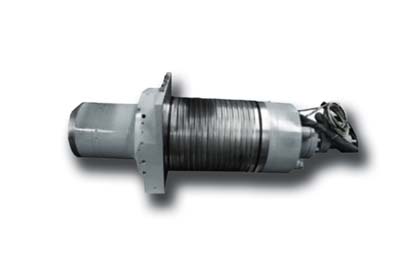

Read MoreToyoda Spindle Repair
Toyoda spindles cover the entire range of spindle duties, from heavy duty milling to holding micron tolerances in a grinding[...]
Continue ReadingToyoda spindles cover the entire range of spindle duties, from heavy duty milling to holding micron tolerances in a grinding application. Our over thirty years of spindle rebuilding enables Northland Tool to rebuild this wide range of spindles with the precision needed to complete the job right. Our machining and grinding department specializes in the manufacture/reconditioning of spindle parts and is capable of holding the micron tolerances needed to ensure your spindle is brought back to the high standards Toyoda has set during the spindle manufacturing process.
We have improved the design of Toyoda spindles in some cases where our customers have not been happy with the longevity of the spindles service life. We have modified the bearing compliments and modified the shaft to make the spindles more robust.
[...]CASE STUDIES
Upon arrival, every spindle is logged into our production tracking software system. Any issues associated with incoming condition as related to transit are noted.[...]
Continue ReadingThe spindles are prioritized and moved to either the disassembly technicians or to the spindle run-up room, depending on the circumstances. Our techs carefully break down the spindle into its component parts while meticulously noting their general condition as well as specific damage to them. They also photograph the process and perform a full dimensional inspection to identify excessive wear which may help identify the cause of failure.
Once the initial disassembly and evaluation are completed, the spindle is given a second look by our production manager who reviews & completes the evaluation. He will identify the mode of failure and all pertinent issues, as well as recommended corrective actions. Many evaluations are not complete until the production manager consults with the head of our grinding & machining department. We often have recommendations for additional steps the customer can take to prevent premature spindle failure in the future. We call on our 30 plus years of experience rebuilding spindles to come to these conclusions.
After our purchasing department sources all replacement part costs & lead times, the quote is generated, given a final check and communicated to the customer for approval. Once we have received the approval, production is scheduled and parts are ordered. All spindle parts are carefully cleaned and any grinding or machining operations are completed. Only when all components are available and qualified does the spindle proceed to our spindle assembly technicians. These highly trained professionals assemble all the spindle components and then perform a rigorous break-in process which may include dynamic balancing as well as thermal & vibration analysis depending on the type of spindle. After a final quality control check is performed, the spindle is given back to our shipping department, carefully boxed to minimize the possibility of in-transit damage and shipped back to you, our customer.
Does your spindle need repair? GET A QUOTE TODAY
MODELS WE REPAIR
At Northland, we take pride in our expert knowledge of every brand we repair-please see the list of models we repair below. If you do not see your particular model please contact us, we have probably repaired one just like it in our over 30 years of spindle rebuilding:
- FA
- FH
- FV
- RB
- MG
- GE
- GL
- PV
COMMON PROBLEMS
From coolant contamination to bearing failure to crashes, Northland knows that there are a variety of issues that will affect the performance of your spindle-and we’re prepared to handle them all. However, the common problems associated with this brand are:
- Bearing failure
- Loss of bearing preload
- Contamination
- Bad stator
- Worn tapers
- Damage from crash
- Rotary union failure
- Bearing failure
- Housings out of ISO
- Fretting housing
- Journal out of ISO
- Crashed spindle
