Gamfior H12 Spindle Repair

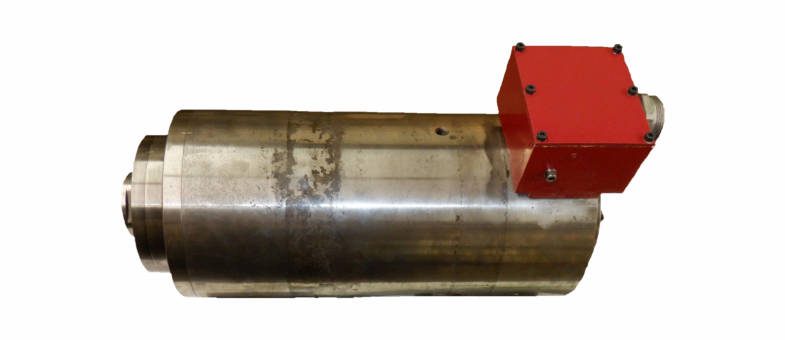

This Gamfior H12 spindle is out of a Cincinnati #2 Cinternal grinding machine. It is grease lubricated, stator driven, and capable of running up to 12,000 RPM.

CHALLENGE

This Gamfior H12 spindle rotated freely when it arrived at Northland Tool, but the bearings felt worn when the spindle was spun by hand. After disassembling the spindle, we discovered that the front bearings had catastrophically failed and the bearing ball cages were split in half in the #1 and #2 bearings. The ball cage was not in the correct position as well. Lastly, the front ID pilot was bell mouthed and will need grinding work. There were no other dimensional deviations noted and the motor field and coolant jacket pass all incoming testing.

SOLUTION

The following actions were performed on this Gamfior H12 spindle:

Clean, inspect overall dimensions
Replace bearings, bolts, and o-rings
Grind, plate, grind (GPG) the ID pilot
Kiss grind the pilot face

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Bearing cage split in half
