Kira VTC40B Spindle Repair

Kira VTC40B Spindle Repair

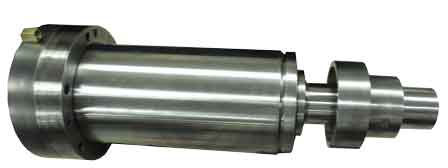

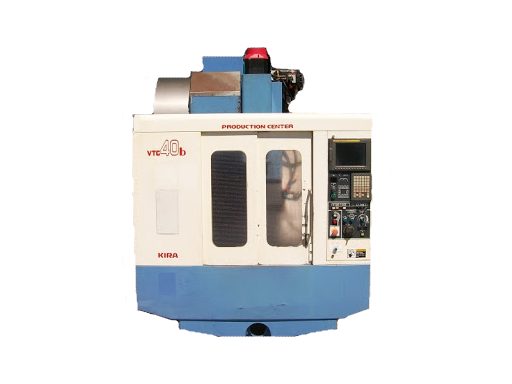

Kira VTC-40B, CAT40, 8000 RPM, grease bearing lubrication, direct coupling drive

Our customer indicated that this vertical turning center spindle had become very hot and had overloaded the motor. After it cooled off, they noticed that the spindle felt very rough when rotated by hand.



CHALLENGE

Kira VTC-40B, CAT40, 8000 RPM, grease bearing lubrication, direct coupling drive

Our customer indicated that this vertical turning center spindle had become very hot and had overloaded the motor. After it cooled off, they noticed that the spindle felt very rough when rotated by hand.

When we evaluated the spindle, it was apparent that the front quad set of bearings had failed due to coolant contamination. The front of the spindle was packed with a sludge of coolant and washed-out grease, and the races, balls & cage of the rear-most bearing in the front set had actually started to separate due to the increased friction and lack of lubrication. We also observed very low drawbar retention force due to compression of the Belleville springs. Our dimensional inspection showed that the ID of the rear bearing housing was looser than ISO spec, but there was no fretting on either the housing ID or the outer races of the rear bearing pair. We reported our findings to the customer, but did not recommend a grind, chrome plate & regrind of this component because it did not contribute to the spindle failure.



SOLUTION

We proceeded to rebuild the spindle with all new bearings front & rear as well as new Belleville springs and collet gripper balls. After final assembly, our break-in, test run and outgoing QC process showed good balance, vibration and thermal values, and the outgoing tool retention force was increased by nearly 70%.

RESULT

Our post-repair follow up with the customer found the spindle running like new. “The spindle has never run so smoothly”

DETAILED CAUSE OF FAILURE

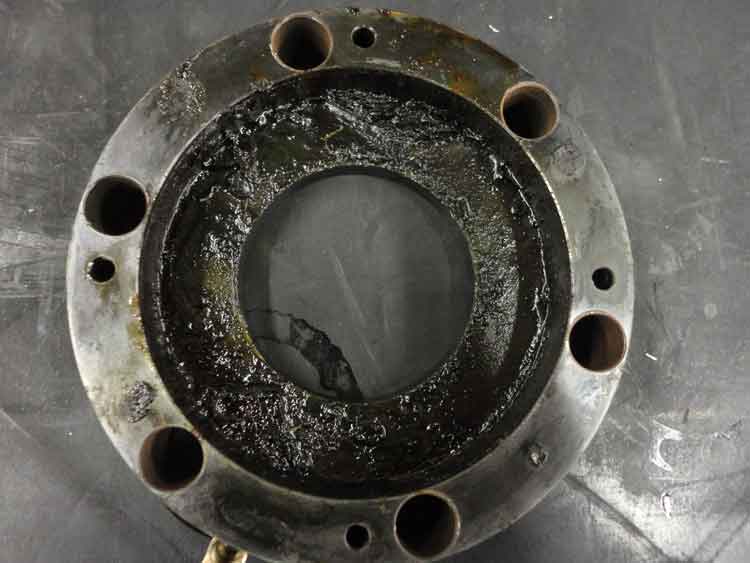

  • Contamination on the front cover that got through to the bearings causing premature failure.

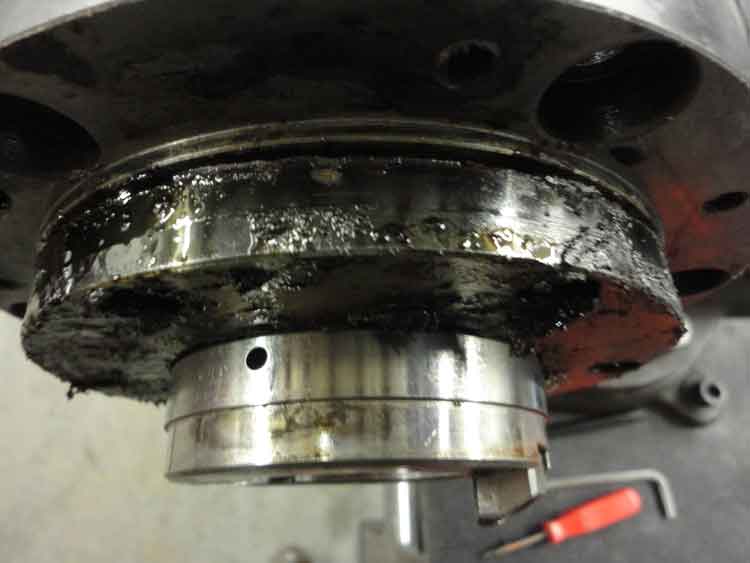

  • Front of the shaft with contaminated grease that flowed from the quad set of bearings.
