Mitsubishi M-V5CN Spindle Repair

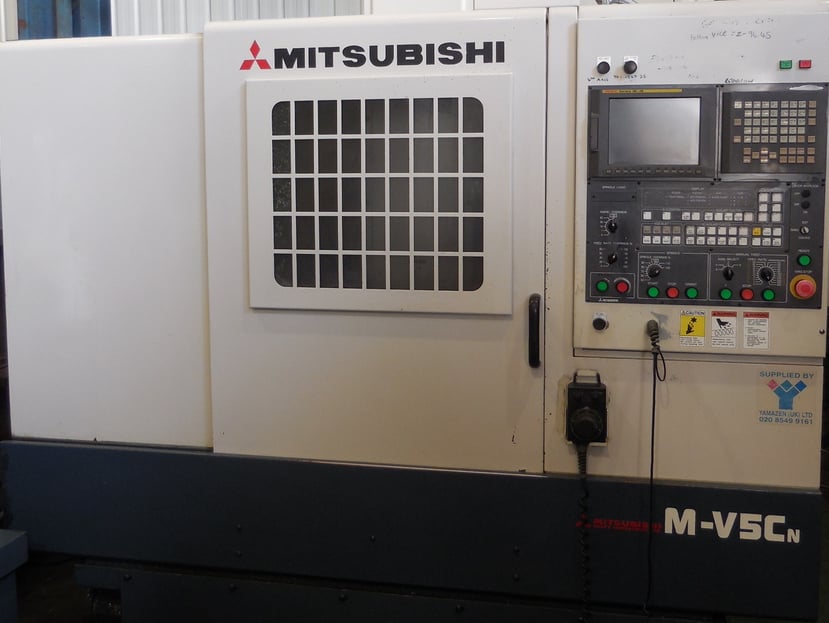

The Mitsubishi M-V5CN is a CNC vertical machining center. It comes standard with a grease lubricated and stator driven spindle capable of running up to 12,000 rpm.

CHALLENGE

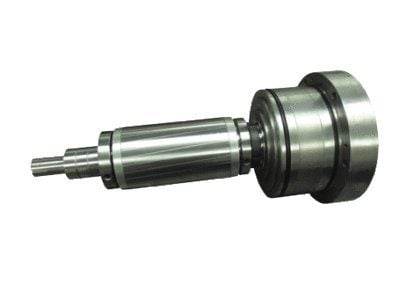

When this Mitsubishi M-V5CN spindle arrived at Northland Tool and Electronics we found that the front quad set of ceramic bearings felt rough when rotated by hand. It could be due to a crash causing a sudden excessive radial load. The shaft tooling taper was worn with poor tool contact and the shaft tail ID was severely scored. The end of the shaft OD was oversized >70µ from the rest of the journal with 8-14µ runout. Lastly, the hydraulic rotor journal had pre-existing light scoring. No other dimensional deviations were noted.

SOLUTION

The following actions were performed on this Mitsubishi M-V5CN spindle:

Clean, inspect overall dimensions
Polish out scoring on rotor journal
Kiss grind shaft tooling taper
Grind, chrome plate, and finish grind rear shaft journal OD and ID
Replace bearings (this quote includes high speed tail bearing), o-rings, and assembly screws

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
