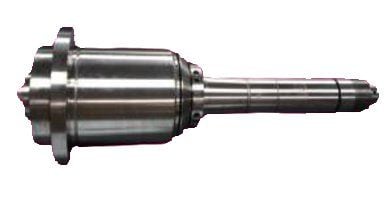

OKK VM4 Spindle Repair
The OKK VM4 is a CNC vertical machining center. It comes fitted with a grease lubricated spindle that is capable of running up to 5,000 rpm.
This OKK VM4 spindle was sent in for a full breakdown and evaluation. After disassembling the spindle and measuring all critical suraces, we noted that the bearings were severely contaminated and the tooling taper had 10 microns of runout. No other dimensional deviations were noted for this repair.
The following actions were performed on this Okuma MC-V4020 spindle:
- Clean all parts of the spindle
- Replace bearings, o-rings, and assembly screws
- Grind, chrome plate, and finish grind the taper
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
