SKF/Gamfior 103473-04 Spindle Repair

SKF/Gamfior 103473-04 Spindle Repair

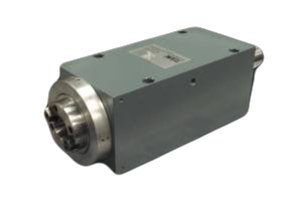

This SKF/Gamfior 103473-04 spindle is grease lubricated, stator driven, and capable of running up to 17,600 rpm.



CHALLENGE

This repair was very typical of a SKF/Gilman type spindle. It came in with a rear bearing failure that was caused by a combination of contamination and belt tension. The rear housing had fretted and needed to be ground plate ground to bring the dimensions to spec.  No other dimensional deviations were noted for this repair.



SOLUTION

The following actions were performed on this SKF/Gamfior 103473-04 spindle:



RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
