DMG Mori TV-400 Spindle Repair

DMG Mori TV-400 Spindle Repair

The DMG Mori TV-400 is a CNC vertical machining center.  It can come fitted with this grease lubricated spindle that is capable of running up to 8,000 rpm.



CHALLENGE

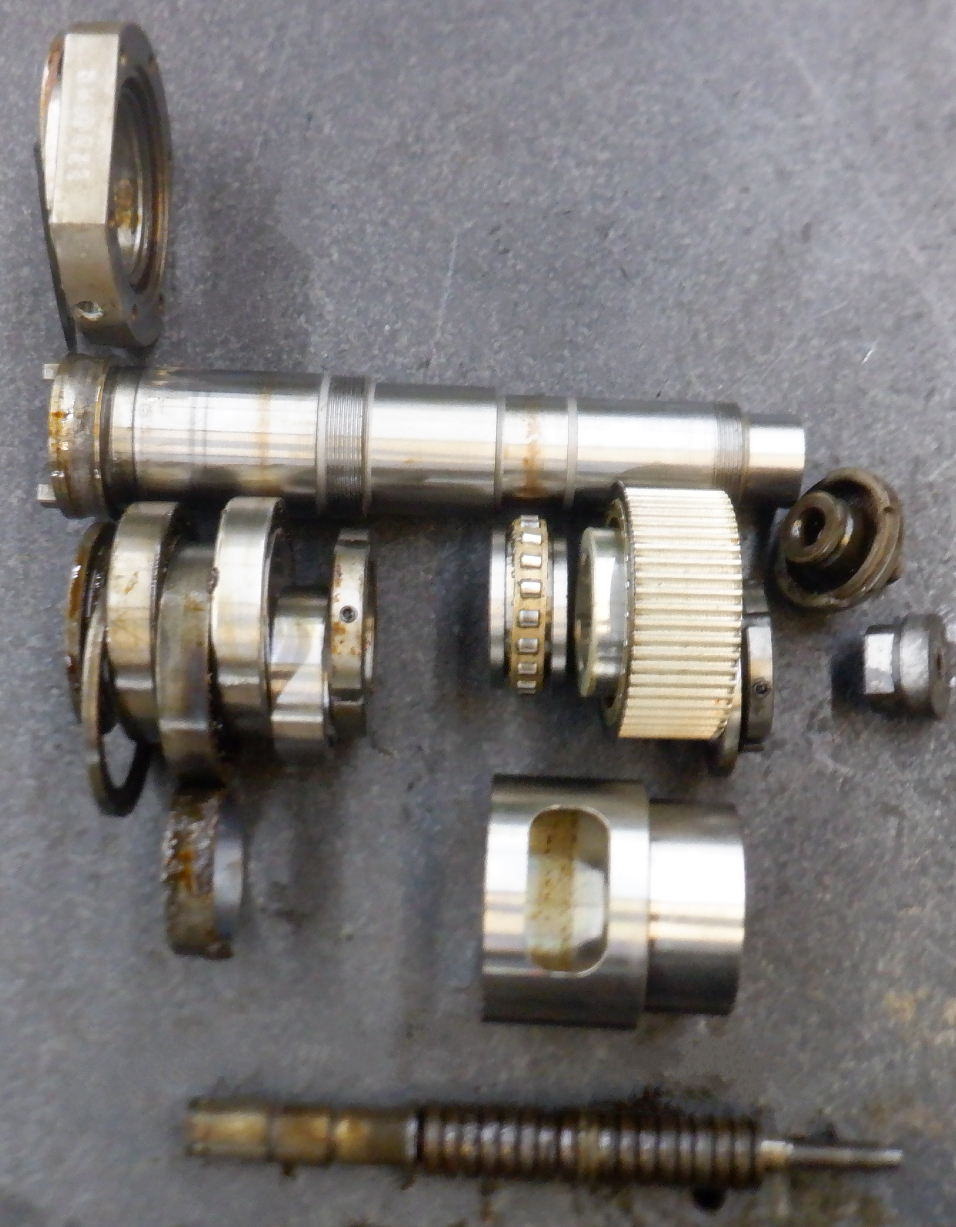

Our customer sent in this DMG Mori TV-400 spindle stating that the tool holder rattled around for a few seconds while making a cut.  Once the spindle arrived at Northland Tool we completed a full disassembly and evaluation.

DMG Mori TV-400 Spindle Repair

This is what we found:

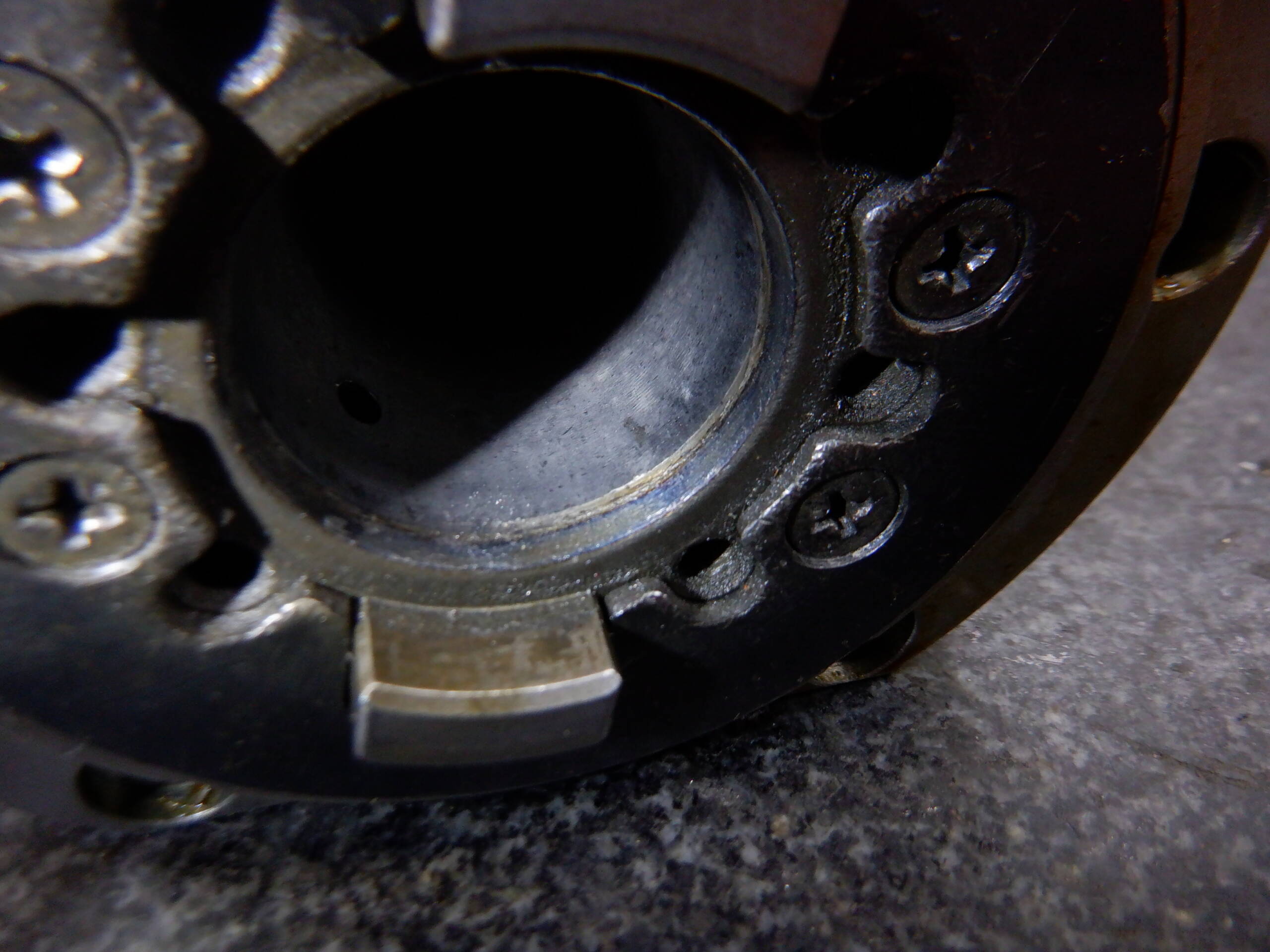

  • ID 30 taper was heavily worn and had a deep groove right at the start of the taper (Pic 3)
  • Front bearing grease had been washed out by coolant and they were contaminated with a brown particulate (Pic 1)
  • Several of the Belleville’s are broken and would have caused loss in draw bar force (Pic 2)
  • Loss in draw bar force allowed for the tool to rattle around in the taper and cause severe damage



SOLUTION

The following actions were performed on this Daewoo DMV500S spindle:

  • Replace bolts, bearings, gripper balls, and bellevilles
  • Grind-Plate-Grind the ID 30 taper due to the deep groove and high run out
  • We are unable to test run the spindle due to it is just shaft and bearings



RESULT

After reassembly of all components and adjusting bearing preload this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

  • DMG Mori TV-400 Spindle Repair

    Brown particulate in bearings (Pic 1)

  • DMG Mori TV-400 Spindle Repair

    Broken bellevilles (Pic 2)

  • DMG Mori TV-400 Spindle Repair

    Damaged taper (Pic 3)
