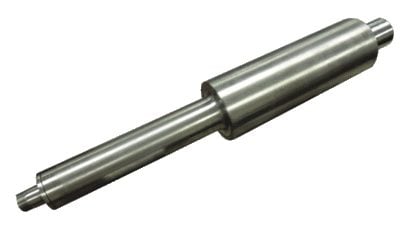

Excello Grinding Spindle Repair

CHALLENGE

When this spindle arrived at Northland Tool and Electronics we disassembled and evaluated it. We found that the front bearings were contaminated with grinding dust. This was found more so in the #1 bearing than the others. The wheel hub and hub retention nut show heavy wear from use (hub also loads the front bearings.) We also found that the front housing labyrinth nut was worn from grinding dust contamination. Lastly, we measured the critical dimensions (bearing journals, housing, etc.) and found that the rear bearing journals were undersized -24/-40µ (ISO is 0/-7µ) and appear to have been previously flash chromed. No other dimensional deviations were noted.

SOLUTION

The following actions were performed on this Excello Grinding spindle:

Clean, inspect overall dimensions
Replace all bolts and o-rings
Replace bearings and felt seal
Manufacture a front housing labyrinth nut
Grind, chrome plate, and finish grind rear bearing journals

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
