Read MoreHaas Super Mini Mill Spindle Repair

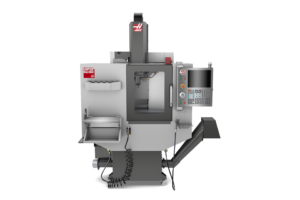

The Haas Mini Mill machines are compact machining centers perfect for small shops or schools. The spindle we repaired was air oil injected, belt driven, and capable of running up to 10,000 RPM.
CHALLENGE

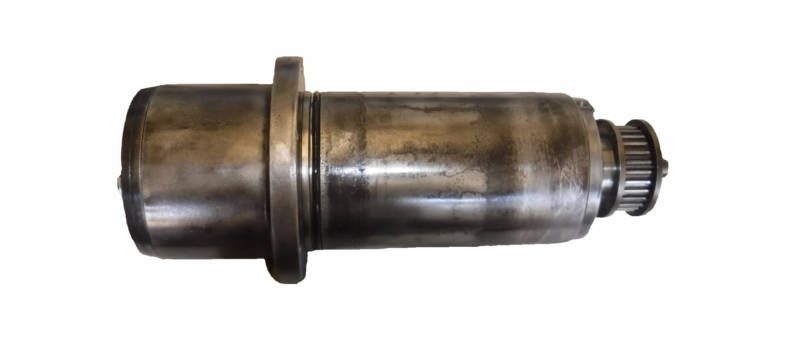

This Haas Super Mini Mill spindle arrived at Northland Tool and we noted that it rotated freely, but the ID Taper had high run out. We then performed a full breakdown and evaluation and recorded that the ID tooling taper had high run out bare shaft as well. Lastly, the front bearings felt worn when spun by hand and the draw bar pulled low force. No other dimensional deviations were noted for this repair.
SOLUTION
The following actions were performed on this Haas Super Mini Mill spindle:
- Clean, inspect overall dimensions
- Replace bolts, o-rings, and bearings
- Replace drawbar assembly
- Grind, plate, grind (GPG) the ID 40 tooling taper
RESULT
After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
Does your spindle need repair? GET A QUOTE TODAY
