Heald H120 Shaft Manufacture

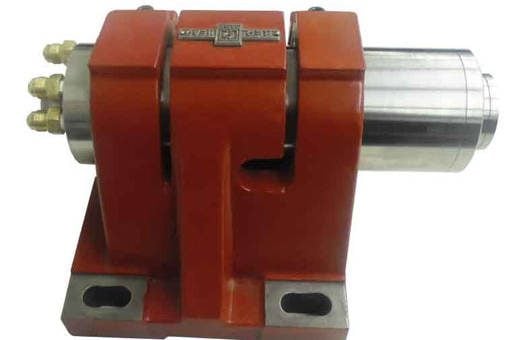

The Heald/Gamfior H120 spindle is an air/oil lubricated and stator driven spindle. It is capable of running up to an amazing 120,000 rpm.

CHALLENGE

Our customer attempted to rebuild this high speed grinding spindle themselves but unfortunately it failed very soon after. After this experience, they decided to cut their losses and send us the spindle for rebuild. When the spindle arrived it had already been partially disassembled.

Our initial inspection revealed that the bearings & spacers were missing and that the field (stator) was not securely mounted in the housing. We also observed that the quill pilot and face were in extremely bad condition, and that the front nut and shaft rotor were damaged as well. Our dimensional inspection showed that the ID of both the front and rear housings were oversized by nearly double ISO. This rear housing deviation also contributed in part to a very loose slide fit for the rear ball cage.

SOLUTION

Our rebuild of this spindle included manufacturing a new shaft & front nut, as well as new front & rear bearing spacers. We also had to grind, chrome plate, and finish grind the ID of the front & rear housings and the OD of the ball cage bushing. We then proceeded to rebuild the spindle with all new ceramic bearings, o-rings, gaskets and assembly screws.

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Removing the ball cage during the disassembly process
Damaged front nut that was replaced during the rebuild
Damage to the front of the spindle shaft
