Heald Red Head 411 Spindle Repair

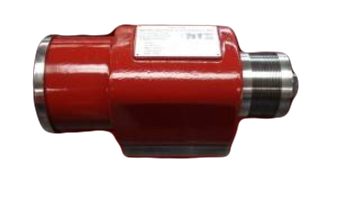

This Heald Red Head 411 spindle is used for many different grinding applications. It is oil mist lubricated, belt driven, and capable of running up to 11,000 rpm.

CHALLENGE

Once this Heald Red Head 411 spindle was completely disassembled, we completed a thorough evaluation of all the parts. The first thing we noted was that the grease was completely washed out of this spindle causing bearing failure. This can be caused by coolant being directed at the face of the spindle or not removing coolant from the spindle before it cools. As the spindle cools it will draw the coolant into the spindle similar to soldering a joint. Over time this will accumulate in the bearings causing premature failure. After measuring the critical dimensions (bearing journals, housing, taper, etc.) we found a few issues to be addressed. First, the rear pulley taper had 16 microns run out. Second, the front bearing journal was fretted and undersized by -14 microns. Lastly, the front housing was scored and egged by 5 microns. No other dimensional deviations were noted for this repair.

SOLUTION

The following actions were performed on this Heald Red Head 411 spindle:

Clean all parts of the spindle
Replace bearings, o-rings, and assembly screws
Grind, chrome plate, and finish grind the front bearing journal and front housing
Kiss grind the rear pulley taper

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
