Hyundai Kia HI-V50D Spindle Repair

The Hyundai Kia HI-V50D is a high production CNC vertical machining center. It can come fitted with this grease lubricated and pulley driven spindle capable of running up to 10,000 RPM.

CHALLENGE

This Hyundai Kia HI-V50D spindle rotated freely when it arrived at Northland Tool, but the bearings felt worn when spun by hand. After performing a full breakdown and evaluation, we recorded no dimensional deviations throughout the spindle. However, we did find the rear tapered roller bearing had catastrophically failed and the ball cage was broken.

Rear tapered roller bearing catastrophically failed

We also noted that the front bearings were contaminated with coolant and the grease had been pushed through the balls.

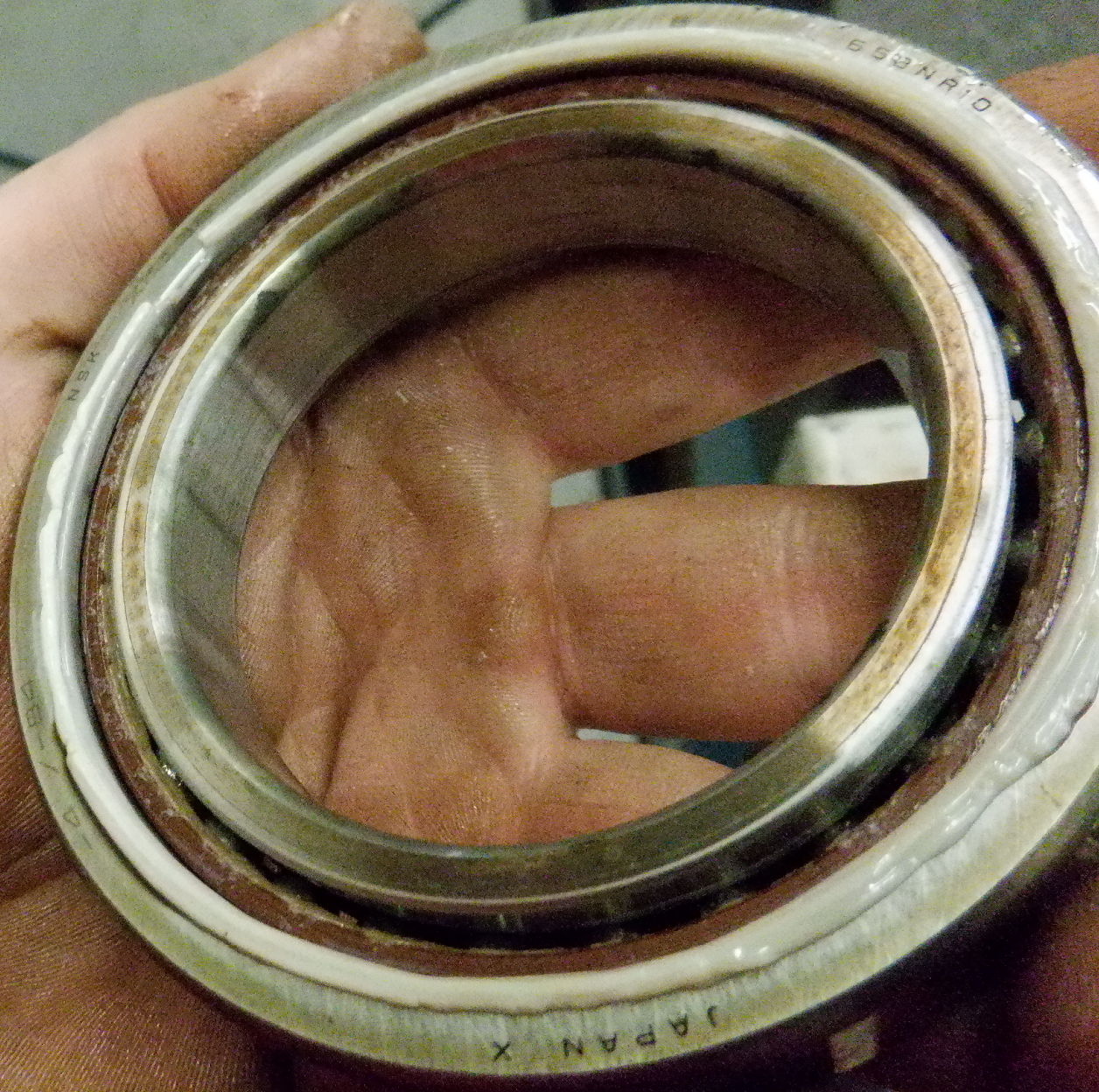

Grease pushed through front bearings

SOLUTION

The following actions were performed on this Hyundai Kia HI-V50D spindle:

Clean, inspect overall dimensions
Replace bearings, bolts, and o-rings

RESULT

After reassembly of all components and adjusting bearing preload, we put the spindle through a rigorous break-in and testing procedure to make sure it passes our final quality inspection. See below for the passing test reports:

Front Bearings Vibration Analysis Spectrum: Rear Bearings Vibration Analysis Spectrum:

This spindle passed our final quality inspection and was returned to our customer with a 1-year warranty.
