Hyundai-Kia VX380TD Spindle Repair

The Hyundai-Kia VX380TD is a 3-axis CNC vertical machining center. It can come fitted with a grease lubricated and coupling driven spindle capable of running up to 12,000 rpm.

CHALLENGE

This Hyundai-Kia VX380TD spindle was seized when it arrived at Northland Tool and Electronics. There were signs of a crash prominent, as the front cover was damaged from what appears to be the drive dogs. The ID taper had high run out and poor tool contact. Both the front cover and the dust shield need to be fixed in machining due to cosmetic damage. Lastly, the gripper balls were worn and will need to be replaced. No other dimensional deviations were noted for the repair.

SOLUTION

The following actions were performed on this Hyundai-Kia VX380TD spindle:

Clean, inspect overall dimensions
Replace bolts, o-rings, gripper balls, bellevilles, and bearings (steel)
Machine rub damage on front cover and dust shield
Grind, chrome plate, and finish grind the ID taper

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

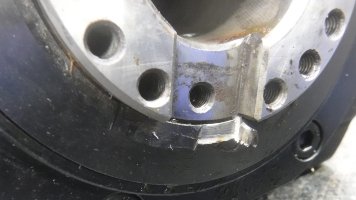

Front cover damage from the suspected crash
Worn taper
Rotating parts laid out for evaluation
