Hyundai-Wia F500VM Spindle Repair

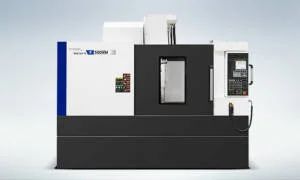

The Hyundai-Wia F500VM is a CNC vertical machining center. It can come equipped with a grease lubricated and belt driven spindle capable of running up to 10,000 rpm.

CHALLENGE

This Hyundai-Wia F500VM spindle was seized incoming. It also arrived with the drawbar partially disassembled out of the shaft. After a full breakdown and evaluation, the #1 and #2 front bearing pair had suffered a catastrophic failure. The ball cages were burnt, broken, and partially disintegrated and the grease in the #3 and #4 rear bearing pair was completely washed out. We also found that one drive key was severely damaged and the gripper fingers (collet) had significant wear on critical tool retention surfaces. Lastly, the post was also worn. No other significant dimensional deviations were noted for this repair.

SOLUTION

The following actions were performed on this Hyundai-Wia F500VM spindle:

Clean and inspect overall dimensions
Manufacture and install a new drive key
Replace all bearings with hybrid small ball ceramic bearings as removed from the spindle
Replace bellevilles, gripper assembly, o-rings, and assembly screws

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Drive dog damage

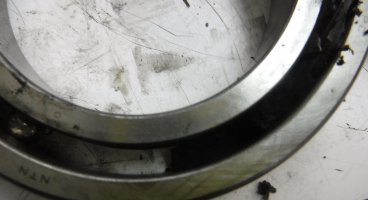

Bearing failure
Rotating parts laid out for evaluation
