The Kitamura HX-300i is a high production CNC horizontal machining center. It can come equipped with this oil lubricated, belt driven spindle capable of running up to 10,000 RPM.
CHALLENGE

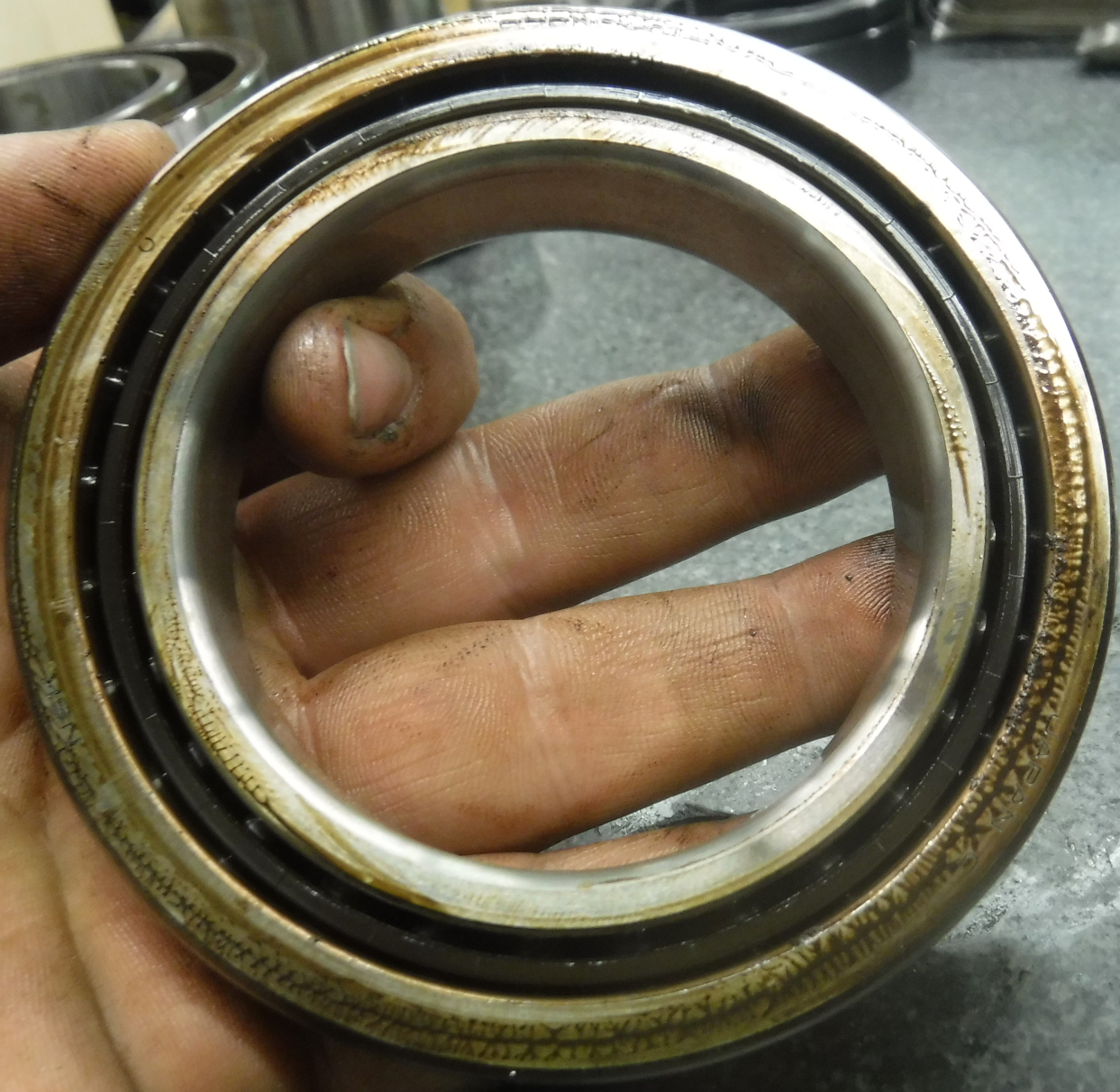

Our customer sent in this Kitamura HX-300i spindle stating that the spindle had been crashed a few times and had poor part finish. After a full breakdown and evaluation, we noted that the taper had high run out and was more of an oval shape on the air gauge than round. We also found that there was oil contamination in the bearings which was a dark brown color.
SOLUTION
The following actions were performed on this Kitamura HX-300i spindle:
- Clean, inspect overall dimensions
- Replace bolts, bearings, and o-rings
- Grind, plate, grind (GPG) the ID tooling taper
RESULT
After reassembly of all components and adjusting bearing preload, we put the spindle through a rigorous break-in and testing procedure to make sure it passes our final quality inspection.
This spindle passed our final quality inspection and was returned to our customer with a 1-year warranty.
