Matsuura MAM72-25V Spindle Repair

The Matsuura MAM72-25V is a CNC vertical machining center designed for 5-axis machining. The main spindle is grease lubricated and coupling driven capable of running up to 15,000 rpm.

CHALLENGE

This Matsuura MAM72-25V spindle came to us from our customer who stated that the spindle had severe vibration. Incoming test showed the drawbar pull force was low and the bearings felt very rough when spun by hand. Upon disassembly we found catastrophic failure of the front bearing, the front housing where the #2 bearing sits was oversized and fretted as well. No other dimesional deviations were noted.

SOLUTION

The following actions were performed on this Matsuura MAM72-25V spindle:

Clean all parts of the spindle
Replace all bolts, o-rings, and bellevilles
Replace bearings with permanent grease bearings
Grind, chrome plate, and finish grind the housing

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

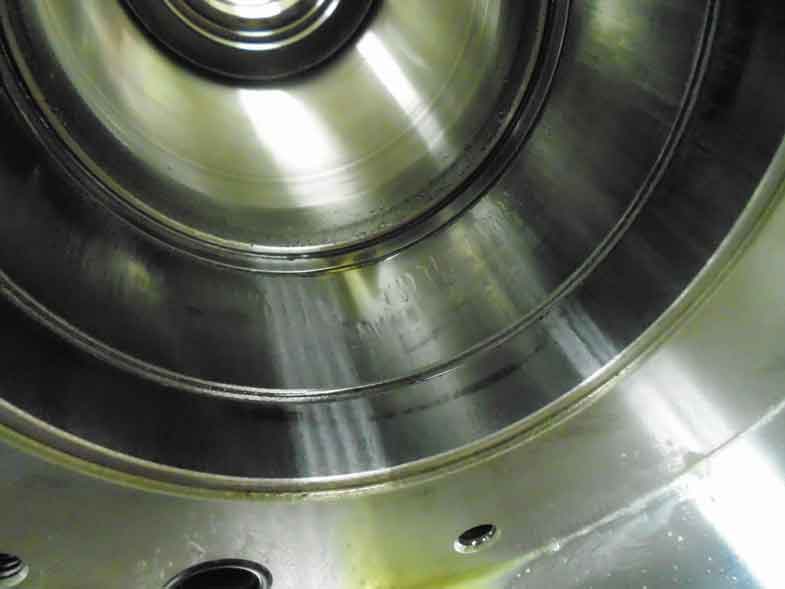

Front housing. You can see the contamination pooling in front of the bearing shoulder.

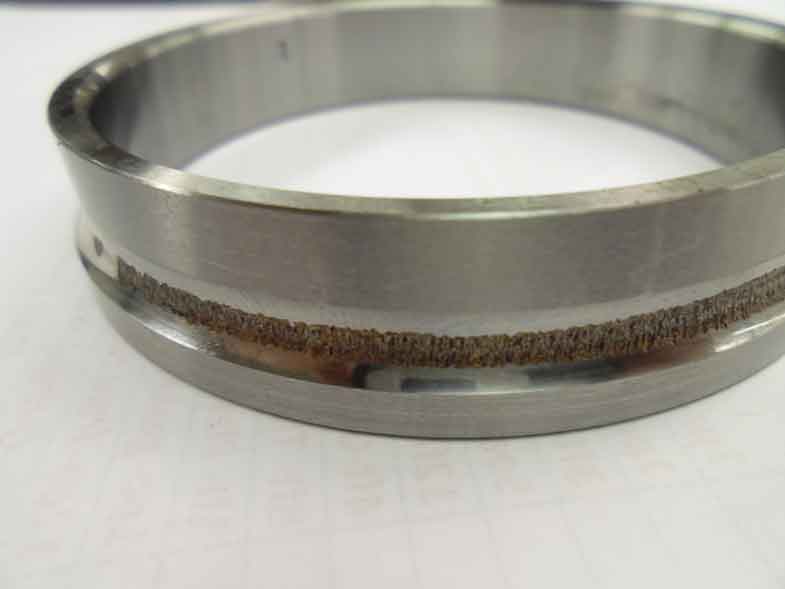

Damage caused to the inner race of the front bearings from contamination.
Grease in the bearings showing signs of the contamination.
