Matsuura MC-600VF Spindle Repair

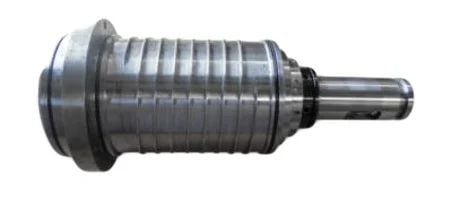

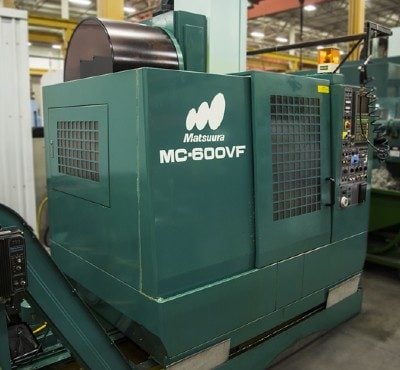

The Matsuura MC-600VF is a 3-axis CNC vertical machining center, equipped with a CAT40 tool taper and running at up to 8,000 rpm.

CHALLENGE

This spindle was received without the front cover, and the rear shaft nut was completely backed off. Breakdown of the spindle revealed that the interior was full of contamination and some parts had corrosion. Integrated drive keys were badly damaged and gripper fingers were heavily worn.
The drawbar nut (spring holder) was stuck and needed to be machined off. The drawbar shaft had been plated and chrome was chipping off causing the Bellevilles to stick. The rear bearing journal for tapered roller measured with high runout.

SOLUTION

This Matsuura spindle rebuild required the following actions:

Reconditioned damaged drive keys
Grind, chrome plate, and finish grind to the drawbar shaft
Kiss grind the rear roller journal
Installed all new bearings, Bellevilles, grippers, o-rings & assembly screws

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Interior spindle housing contamination
Spindle parts after disassembly, before being cleaned
Grease in bearings had become contaminated
