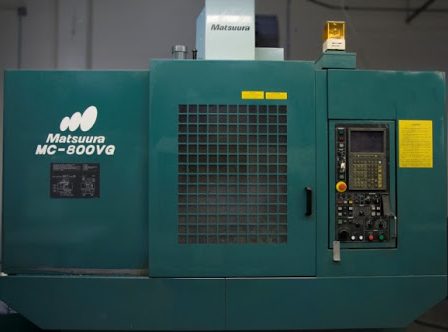

Matsuura MC-800VG Spindle Repair

This spindle was shipped to us by a customer in Latvia. It’s not uncommon for us to receive spindles from outside the United States but this was our first Latvia repair.

CHALLENGE

This Matsuura MC-800VG did not spin freely upon arriving to Northland Tool and Electronics. We noted that the spindle was previously taken apart by the customer and re-assembled. After disassembly and evaluation we noted that the #1 bearing had failed. The Big Plus taper was damaged and showing signs of wear. We also noted that the gripper fingers were worn and the shaft threads were slightly damaged.

SOLUTION

The following actions were performed on this Matsuura MC-800VG spindle:

Clean, inspect overall dimensions
Replace bearings, orings, crush rings, and screws
Grind, chrome plate, and finish grind the Big Plus taper
Repair shaft threads

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
