Matsuura RA-IIIF Spindle Repair

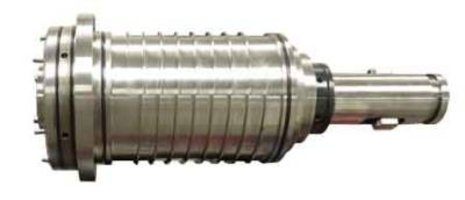

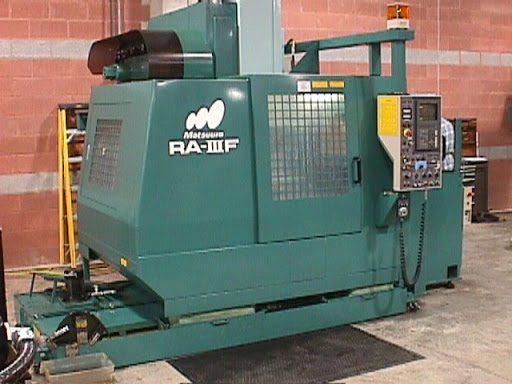

The Matsuura RA-IIIF is a CNC vertical machining center. It comes equippped with an oil mist lubricated and direct driven spindle capable of running up to 15,000 rpm.

CHALLENGE

This Matsuura RA-IIIF spindle arrived at Northland Tool and Electronics in pretty rough shape. The rear housing cover was coated with coolant residue, perhaps from leaking rotary union. Upon disassembly, we noted that there was a catastrophic rear roller bearing failure from contamination. Because of the rear bearing failure the rear roller housing became fretted and the rear roller bearing race can be pushed into the housing by hand. The shaft taper had a few deep pock marks and runout around said marks measured 2-4µ. Lastly, the gripper fingers were very worn and the front housing cover and unclamp bar were not supplied with spindle.

SOLUTION

The following actions were performed on this Matsuura RA-IIIF spindle:

Clean, inspect overall dimensions
Grind, chrome plate & finish grind (GPG) the rear roller housing
GPG the shaft taper
Install air purge port in rear cover to reduce rear roller contamination
Replace bearings, Bellevilles, o-rings, and grippers
Customer to supply missing components for setting drawbar and test running spindle
Customer should inspect rotary union for leakage

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

This view of the spindle shows the contamination on the rear cover and rear housing of this Matsuura spindle.
