Mori Seiki SL-00 Spindle Repair

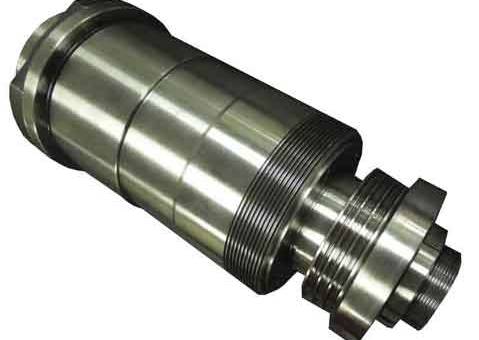

The Mori Seiki SL-00 is an older CNC turning center. It comes fitted with a grease lubricated and belt driven spindle capable of running up to 4,500 rpm.

CHALLENGE

The front bearings in this Mori Seiki SL-00 spindle failed from contamination with coolant, which had entered through the front of the spindle. The grease in the front bearings was also full of debris from a cage which apparently disintegrated during the failure. In addition, the hydraulic sleeve behind the front bearings had severely galled the spindle shaft, and the rear shaft nut was damaged. Our dimensional inspection also established that the lathe taper OD had excessive runout.

SOLUTION

We recommended green grinding, hard chromium plating, and finish grinding the galled spindle shaft to remove the damage and rebuild the journal to ISO spec. We also dusted the lathe taper OD to improve the runout. We replaced the full bearing complement, hydraulic sleeve, rear shaft nut, o-rings, and assembly hardware. We replaced the obsolete double-directional angular contact bearing we found behind the front tapered roller bearing with a pair of angular contact bearings behind the roller.

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

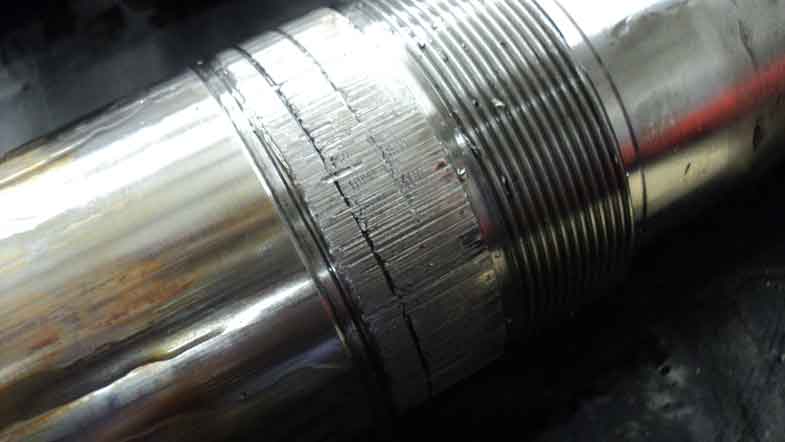

This area of the shaft is precision ground to match the hydraulic nut that holds the front bearings in place. This damage is generally caused by someone attempting to press off the nut without pressurizing the nut with hydraulic fluid. It requires a grind, plate, grind to the shaft to make a sealing surface that will hold the hydraulic pressure needed for proper seating of the nut. We also needed to manufacture and precision grind a new hydraulic nut to replace the damaged nut.

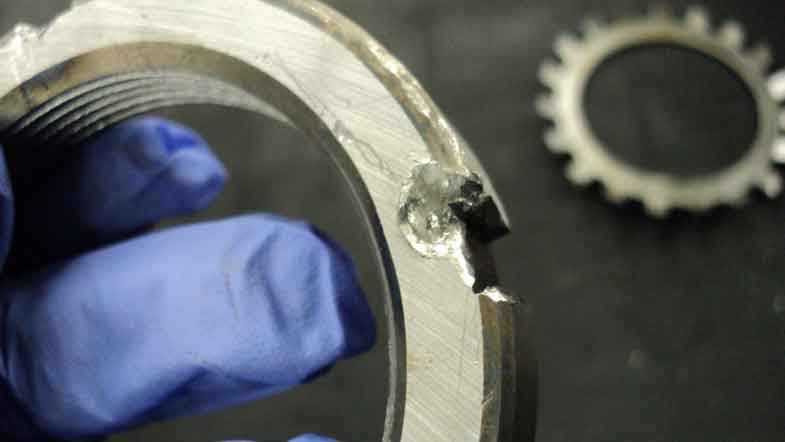

Damage done to the rear nut previous to our receiving the spindle. We repair this to be able to maintain proper assembly and disassembly procedures.

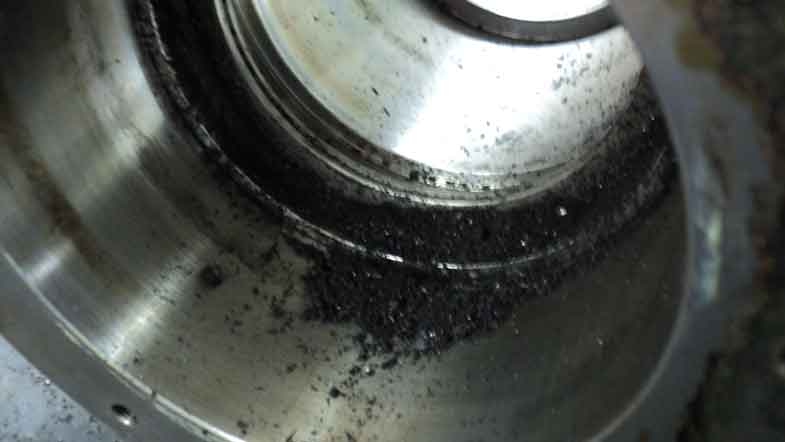

Contamination found in the bearings.
This is the debris left from the deteriorating bearing cage.

‹ ›
