Okamoto OGM 820UD Spindle Repair

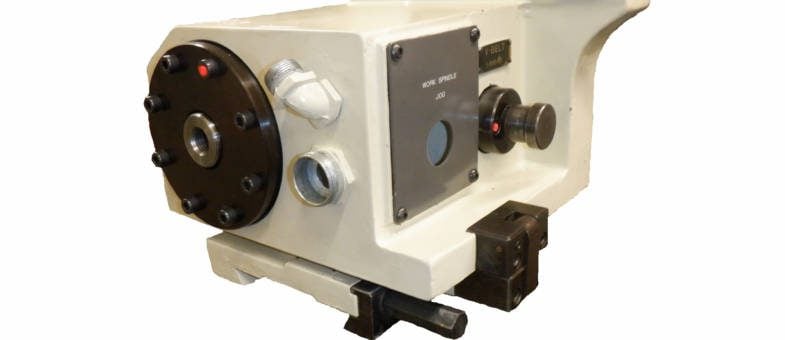

The Okamoto OGM 820UD is a high performance CNC surface grinder. It comes fitted with this grease lubricated and belt driven spindle.

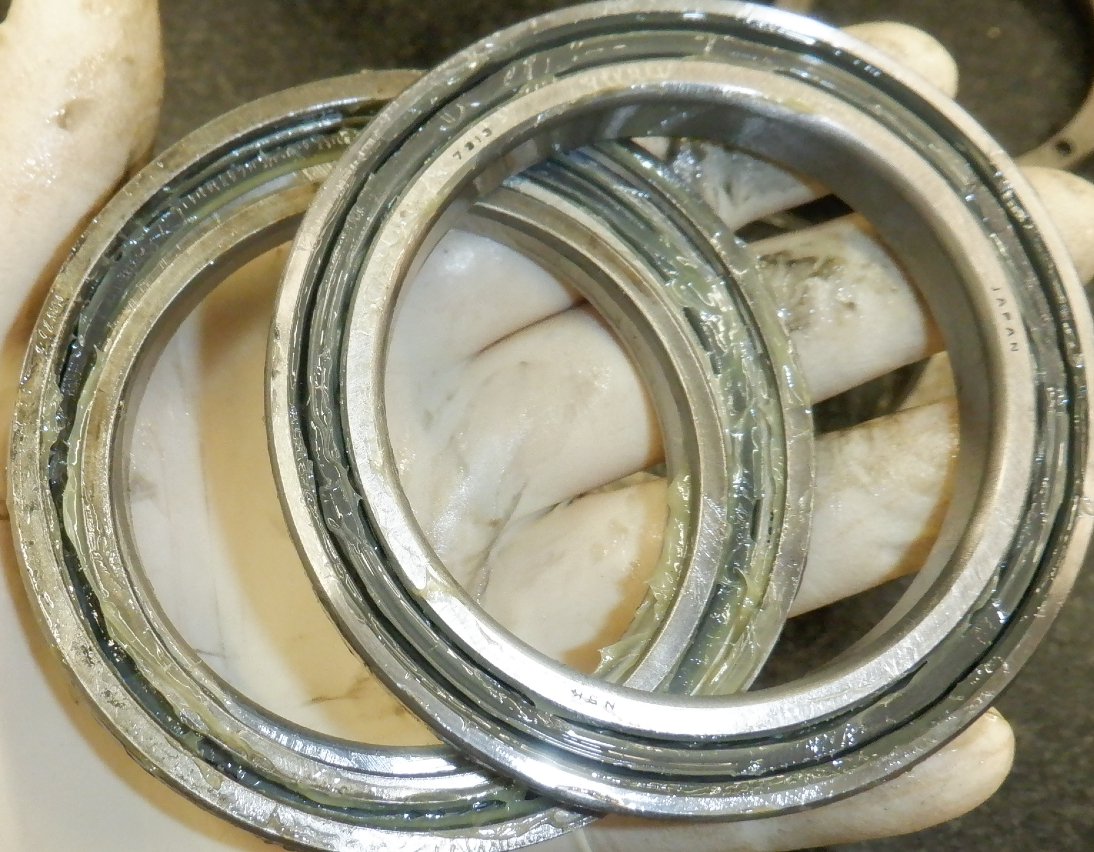

This Okamoto OGM 820UD spindle rotated freely when it arrived at Northland Tool, but the bearings felt worn when spun by hand. After performing a full disassembly, we recorded that the grease in the bearings was contaminated with coolant and one of the threaded holes in the rear housing has been cross threaded.
A dimensional evaluation was then completed and we found two unacceptable deviations. FIrst, the front ID tooling taper had 4μ of run out and second, the front shoulder had high run out as well. No other dimensional deviations were noted for this repair.
The following actions were performed on this Okamoto OGM 820UD spindle:
- Clean, inspect overall dimensions
- Replace bearings, bolts, o-rings, and seal
- Kiss grind the ID taper and front bearing shoulder
- Repair damaged threads in rear housing
After reassembly of all components and adjusting bearing preload, we put the spindle through a rigorous break-in and testing procedure to make sure it passes our final quality inspection.
This spindle passed our final quality inspection and was returned to our customer with a 1-year warranty.
