Okuma MX40HA Spindle Repair

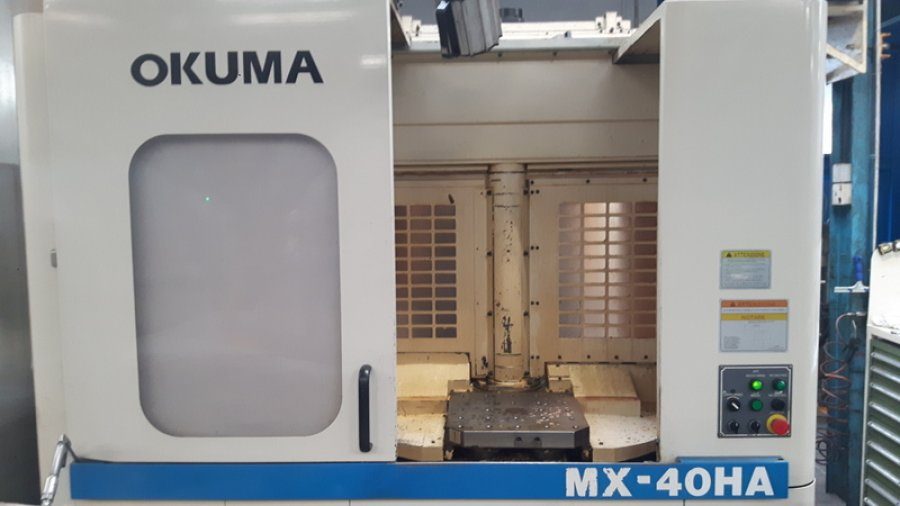

The Okuma MX-40HA is a CNC vertical machining center. It comes standard with a grease lubricated and stator driven spindle capable of running up to 12,000 rpm.

CHALLENGE

The interior of this Okuma MX-40HA spindle was contaminated with coolant and particulate, including the grease in all bearings. The tooling taper ID had high runout and the chrome was chipping off. The tail journal of the shaft was scored and pitted with excessive runout >10µ. The rear compression ring of the shaft rotor was out of round. Our customer did not provide the drawbar assembly but they did request that we ship a pre-lubricated tail bearing back with the spindle.

SOLUTION

We reworked the rear compression ring to insure stability of the rotor on the shaft, and performed a green grind, chrome plate, and finish grind of the tooling taper ID and shaft tail journal. After cleaning, we installed the bearings, o-rings, and assembly screws.

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Contamination
