SKF 18SB1037 Spindle Repair

SKF 18SB1037 Spindle Repair

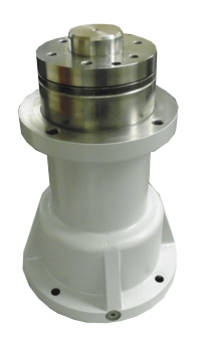

The SKF 18SB1037 spindle is grease lubricated, coupling driven, and capable of running up to 1,500 rpm.



CHALLENGE

This SKF 18SB1037 spindle suffered a catastrophic failure of the front roller bearing, likely due to friction from excessive lubrication.  We found multiple types of grease throughout the spindle, and the grease was not contained to just the rolling elements.  Our customer indicated that front roller preload must not allow more than .0002” axial movement @1000lbs vertical pressure.  It was also noted that the front 90mm shaft pilot OD was undersized -12/-15µ with runout of 4/5µ, but the customer stated that this was not significant.



SOLUTION

The following actions were performed on this SKF 18SB1037 spindle:

  • Clean, inspect overall dimensions
  • Replace bearings, screws, drive coupling bushings, grease fittings, and dust covers



RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.
