YCM FV-102A Spindle Repair

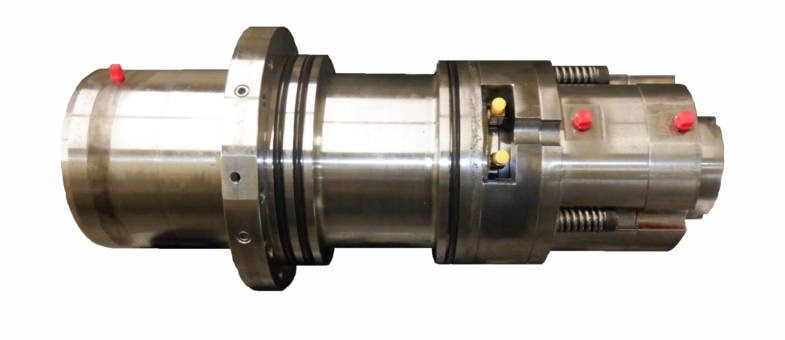

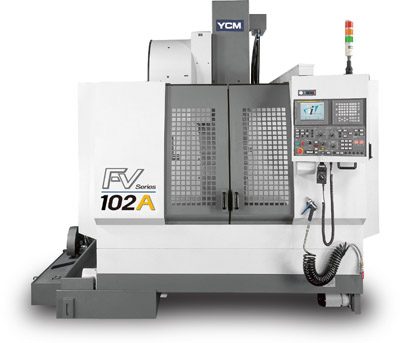

The YCM FV-102A boasts a hi-speed and hi-power spindle designed for production CNC machining. It can come fitted with this grease lubricated and coupling driven spindle capable of running up to 12,000 RPM.

CHALLENGE

This YCM FV-102A spindle rotated freely when it arrived at Northland Tool, but the bearings felt worn when spun by hand. After completing a full disassembly and evaluation, we recorded that there was a thick brown sludge in all of the bearings.

Brown sludge in bearings

We then performed a full dimensional evaluation and found a few issues. First, the ID taper had low spots and did not pass the air gauge testing. Second, the drive dogs were worn and in need of repair. Lastly, the grippers and gripper post were worn.

SOLUTION

The following actions were performed on this YCM FV-102A spindle:

Clean, inspect overall dimensions
Replace bearings, bolts, o-rings, seals, and grippers
Grind, plate, grind (GPG) the 40 ID Taper
Repair damaged drive dogs

RESULT

After reassembly of all components and adjusting bearing preload, we put the spindle through a rigorous break-in and testing procedure to make sure it passes our final quality inspection.

This spindle passed our final quality inspection and was returned to our customer with a 1-year warranty.
