What Is OD Grinding? Advantages, Applications, & More
OD grinding — or outside diameter grinding — is a cornerstone of precision manufacturing, where exact specifications and flawless surface finishes are essential. Industries such as aerospace, automotive, and medical devices rely on this technique to produce components that must perform reliably under extreme conditions, including high temperatures, intense pressure, and precise mechanical demands.
To fully understand the impact and benefits of OD grinding, let’s explore the process, its advantages, and how it’s applied across various industries that require nothing short of perfection.

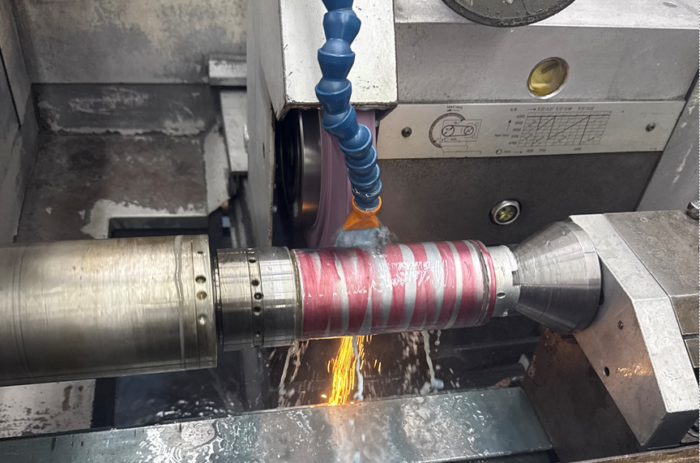

What Is OD Grinding?
OD Grinding is crucial for achieving the precise external dimensions required for cylindrical parts, particularly when high accuracy and smooth finishes are needed. This process ensures that components meet exacting standards, so they can maintain tight tolerances and deliver consistent, reliable results.
Over time, OD grinding has undergone significant advancements. It started with manual methods, where skilled hands guided the grinding wheel along the part’s surface, carefully removing material to achieve the desired shape. The introduction of mechanical and hydraulic grinders improved consistency and efficiency by automating the movement of both the grinding wheel and the workpiece.
However, it was CNC (computer numerical control) technology that truly transformed the field, allowing for precise, repeatable control over every aspect of the grinding process. Today, modern OD grinders use advanced grinding wheels, automated calibration, and adaptive controls to push the limits of precision and reliability.
The process revolves around three key elements:
- Grinding wheel: Engineered for specific tasks and materials, it rotates at high speed, gradually removing material from the workpiece to achieve the desired finish.
- Workpiece: The cylindrical part is carefully mounted and rotated, enabling the grinding wheel to evenly shape its exterior.
- Grinding machine: Specialized equipment, such as cylindrical and centerless grinders, securely hold the workpiece while controlling its rotation and the movement of the grinding wheel. This setup ensures the grinding wheel maintains steady contact with the workpiece, gradually shaving off material to achieve the desired shape and finish.
OD Grinding Advantages
OD Grinding offers several specific advantages, including:
- Precise centering for true rotational symmetry
- Correction of ovality and taper in cylindrical parts
- Transverse, plunge, and form grinding capabilities
- Handling of large industrial rolls and long shafts
- Achieving micron-level tolerances for high-stress applications
- Producing smooth finishes for reduced friction and wear
- Compatibility with metals, ceramics, and composites
- Reducing waste and lowering production costs
These advantages make OD Grinding vital across various industries where precision and reliability are critical. It ensures exact tolerances for components like aerospace shafts, automotive engine parts, and medical devices, while also supporting the rigorous demands of other high-stakes applications.
OD Grinding Applications & Industries
OD Grinding is essential in industries where precision and superior surface finishes are non-negotiable. This technique ensures that components meet strict tolerances and can withstand demanding conditions, making it a key process in several high-stakes fields.
- Aerospace: Producing turbine shafts and landing gear parts with extreme precision and reliability.
- Medical devices: Ensuring exceptional precision and reliability for components used in life-saving equipment, such as bone drills, catheter bodies, and asthma inhaler pins.
- Automotive: Manufacturing engine parts, such as crankshafts and camshafts, where exact tolerances are crucial for performance and safety.
- Machine tooling: Crafting spindles and other critical machine components that require precise dimensions and surface finishes for efficient operation.
- Energy: Creating parts for turbines, generators, and other energy-related equipment that must perform flawlessly under high stress.
- Defense: Manufacturing components like missile guidance systems and armored vehicle parts, where precision and durability are vital for mission success.
To understand why OD Grinding is so effective across applications and industries, it’s important to look at the process that makes these results possible.
The OD Grinding Process
OD Grinding’s effectiveness stems from a carefully controlled process designed to meet the rigorous standards of high-stakes industries. Each stage, from preparation to the final grinding, is crucial for delivering high-precision components.
Before grinding begins, thorough preparation is essential and includes:
- Accurately measuring and securely mounting the workpiece to ensure stability throughout the process.
- Precisely aligning the workpiece on its central axis, which is crucial for maintaining symmetry and avoiding defects.
Next is the grinding stage, where precision is maintained through:
- Controlled rotation of both the workpiece and the grinding wheel, allowing for even material removal and a consistent surface finish.
- Smooth, uninterrupted grinding, with the ability to reverse direction upon contact, ensuring uniform results across the entire surface.
Choosing the Right Equipment
The success of the OD Grinding process also depends on selecting the appropriate machinery for the job. The two primary types of OD grinding machines are:
- Cylindrical grinders, which are ideal for grinding various cylindrical parts and are adaptable to a wide range of sizes and shapes.
- Centerless grinders, which are ideal for parts that don’t need to be mounted, provide high precision and efficiency, especially for smaller or more delicate components.
Material Considerations
OD Grinding is effective on a variety of materials, which are selected based on the specific needs of the application:
- Metals: Commonly used materials like steel and aluminum are essential in industries such as automotive and aerospace.
- Ceramics: Chosen for high-wear applications where durability is a priority.
- Composites: Tailored to specific needs, composites offer a balance of strength and light weight.
When compared to other grinding methods, OD Grinding offers distinct advantages:
- It is specifically designed to create smooth, precise finishes on the outer diameter of cylindrical parts, making it ideal for applications where external dimensions are critical.
- Unlike methods focused on internal or irregular shapes, OD Grinding excels in delivering consistent results on external surfaces, which is crucial for the performance and reliability of components.
Tools & Equipment for OD Grinding
The right combination of quality components and technological advancements ensures that each step of the OD Grinding process meets the exacting standards required in various industries.
OD Grinding effectiveness begins with selecting the appropriate tools and equipment, including the following:
- Grinding wheels: The choice of grinding wheel is critical, with various designs and materials available to match specific applications. Whether working with metals, ceramics, or composites, the right grinding wheel ensures efficient material removal and a high-quality surface finish.
- Workholding devices: Stability and precision during grinding are ensured by robust workholding devices. These tools keep the workpiece secure, allowing for consistent and accurate grinding.
- Dressing tools: Maintaining the sharpness of the grinding wheel is vital for consistent performance. Dressing tools are used to reshape and clean the grinding wheel, ensuring it remains effective throughout the process.
Recent advancements have enhanced the OD Grinding process. CNC technology offers precise automation, allowing for complex tasks to be executed with high accuracy. Innovations in grinding wheel materials have improved durability, leading to longer tool life and reduced downtime.
Additionally, real-time monitoring and adaptive control systems allow for continuous fine-tuning during grinding, ensuring optimal performance and consistent results.
OD Grinding Best Practices
Implementing best practices in OD grinding ensures the highest quality results and maximizes efficiency. Here are some key tips and strategies for achieving optimal performance.
Tips for Optimal Performance
To get the best results from OD Grinding, consider these essential tips:
- Choose appropriate grinding wheel materials: Select the right grinding wheel material based on the workpiece and application to ensure effective material removal and a quality finish.
- Maintain consistent feed rates and speeds: Keep feed rates and speeds steady to achieve uniform grinding and avoid inconsistencies.
- Apply proper coolant: Use the appropriate coolant to reduce heat buildup, which can lead to thermal damage and affect the quality of the finish.
Quality Control Techniques
Ensuring quality throughout the OD Grinding process requires diligent monitoring and inspection that includes:
- In-process gauging: Monitor dimensions during the grinding process with in-process gauging to catch deviations early and make necessary adjustments.
- Post-grinding inspections: Conduct thorough inspections using precision tools to verify that the final product meets all specifications.
- Statistical process control (SPC): Implement SPC to track process performance and ensure consistent quality across production runs.
Maintenance & Calibration
Maintaining high standards in OD Grinding also involves:
- Routine maintenance: Prevents wear and tear on grinding equipment, keeping machines in optimal condition.
- Precise calibration: Ensures accurate calibration of machines to meet tight tolerances consistently.
- Regular inspections: Identifies potential issues early through routine inspections, minimizing downtime and maintaining efficiency.
Common Challenges & Solutions
Even with best practices in place, challenges can arise during the OD Grinding process. Here are some common issues and effective solutions:
- Spindle wear: Keeping up on both the workpiece and grinding wheel spindles to make sure tolerances can be properly held.
- Combat wear: Regularly dress the grinding wheel to maintain sharpness and ensure consistent performance.
- Manage workpiece deflection: Especially with longer parts, use steady rests to keep the workpiece stable during grinding.
- Prevent thermal damage: Carefully control grinding parameters such as speed, feed rate, and coolant application.
By integrating these best practices into the OD Grinding process, manufacturers can achieve superior quality, improve efficiency, and reduce the likelihood of costly errors.
Achieving Excellence in OD Grinding
Excellence in OD Grinding is achieved through a strategic combination of precise techniques, advanced technology, and adherence to best practices. With the right approach, manufacturers can consistently produce high-quality components that meet exacting standards.
Ready to experience the benefits of precision OD Grinding? Contact Northland Tool & Electronics today for a quote.
