Spindle Speeders: Use Cases & Key Considerations
In the high-stakes world of manufacturing — where every second counts and precision is crucial — maximizing machine performance can set you apart. One effective way to achieve this is by enhancing the capabilities of your existing equipment. Spindle speeders, for example, can elevate your machinery’s potential, allowing for faster and more precise work without requiring expensive upgrades.
Spindle speeders offer a practical way to enhance your machinery’s output, keeping projects on schedule and under budget. From aerospace to automotive, many different industries know the value of these devices in maintaining a competitive edge.
In this guide, we’ll delve into the role of spindle speeders, exploring their applications and the key factors to consider before adding one to your setup. Let’s dive in and see how these tools can streamline your operations and keep production lines humming.
What Is a Spindle Speeder?

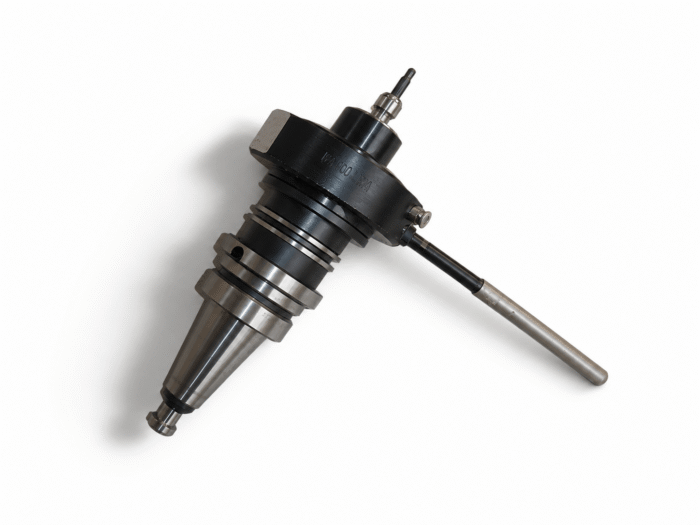

A spindle speeder is a device that attaches to a machine’s existing spindle or housing, increasing its rotational speed capabilities and allowing for more precise and efficient operations. Also known as spindle increasers or multipliers, these devices can be mounted directly onto the spindle taper. Many models are compatible with automatic tool changers, making them easy to integrate into existing setups.
There are two main types of spindle speeders: transmission and air turbine. Transmission speeders use either gear or belt drives to enhance the speed provided by the existing spindle. In contrast, air turbine speeders operate with a compressed air line, keeping the existing spindle stationary while the speeder itself runs. Both types feature an offset pin that prevents the housing from rotating, ensuring stable and accurate operation.
These speeders are particularly useful in scenarios where increasing the spindle speed is necessary for tasks where higher speed is necessary—like fine drilling, milling, and engraving— without requiring a costly machine upgrade.
Spindle speeders are particularly valuable in settings where the existing machinery’s speed limits are insufficient for the required precision and efficiency, making them a practical and cost-effective solution for many manufacturing needs. Key situations include:
When Are Spindle Speeders Used?
Achieving Higher RPMs –
Speeders are crucial when operations require RPMs beyond the machine’s standard limits, such as for fine drilling, milling, and engraving.
Improving Surface Finish –
These spindle attachments enable finer cuts at higher speeds, which can significantly enhance surface finish quality—essential for industries demanding high precision.
Enabling Versatile Machining Capabilities –
Spindle speeders can be used in various machining processes, including vertical, horizontal, and angular operations, without needing to reposition the workpiece or invest in specialized equipment.
Providing Cost-Effective Performance Enhancement –
While spindle speeders do not reduce spindle wear, they are a more economical solution compared to buying a new high-speed machine and provide speed enhancements at a lower cost.
Optimizing Smaller Diameter Tooling –
Speeders enable the use of smaller-diameter tools at high speeds, which can improve cutting efficiency and precision, although they don’t directly prolong tool life.
Key Considerations Before Purchasing & Installing a Spindle Speed Increaser
When considering a spindle speeder for your machinery, it’s important to evaluate several factors to ensure it fits your operational needs and equipment specifications:
- Cost of Operation
Spindle speeders offer a more cost-effective alternative to purchasing new high-speed machinery, but they still require a substantial upfront investment. Costs can vary widely based on the model and its features, so consider both the initial expense and any ongoing maintenance or potential wear on the spindle. - Compatibility with Existing Equipment
Not all machines are compatible with spindle speeders. Ensure the speeder can be securely mounted and that your equipment can handle the increased speeds safely and effectively. - Impact on Spindle Wear
While spindle speeders increase RPMs, they do not mitigate wear on the spindle. In fact, they can accelerate wear if the spindle isn’t in good condition. Assessing your spindle’s health before installation is crucial to prevent potential damage. - Maintenance Requirements
Different spindle speeders have varying maintenance needs. For example, oil-lubricated or air-powered models might require regular upkeep. Understanding these requirements is key to maintaining long-term performance. - Frequency of Use
Consider how often the spindle speeder will be used. Frequent use can justify the upfront cost, while occasional use might not provide sufficient return on investment. - Potential for Issues or Malfunctions
Adding a spindle speeder introduces new complexities that can lead to malfunctions. Ensuring proper installation and following maintenance protocols can help lessen these risks.
Are There Different Types of Spindle Speeders?
Selecting the right spindle speeder can transform your machining operations by expanding your equipment’s capabilities. Here’s a breakdown of the different types available:
Digitally Controlled Speeders
Equipped with electronic control units, these speeders enable precise adjustments to spindle speed and direction, perfect for operations that require meticulous control.
Pneumatic Speeders
Using compressed air, pneumatic speeders achieve high RPMs. They excel with small-diameter tools, providing the finesse needed for detailed work.
Spindle-Driven Speeders
These speeders harness the power of the machine’s existing spindle motor to increase RPMs. While they boost performance, they also maintain the original load on the spindle, which can lead to increased wear over time.
Modular Speeders
Designed for versatility, modular speeders can be adapted or upgraded to suit different machining tasks or equipment configurations, making them a flexible choice for diverse manufacturing needs.
Specialized Speeders
Some speeders are designed for specific industry applications, such as aerospace high-speed machining or automotive heavy-duty operations, providing tailored solutions for unique challenges.
How Do Spindle Speeders Affect Spindle Maintenance?
Spindle speeders can significantly boost machine performance, but they also have implications for spindle maintenance. Knowing about the following potential impacts can help you prepare and maintain your equipment effectively:
- Wear and Tear
Although spindle speeders enable higher RPMs, they do not reduce the inherent wear on the spindle. Increased speeds can exacerbate wear if the spindle isn’t in good condition. Regular monitoring and maintenance are crucial to prevent damage. - Maintenance Requirements
The maintenance needs of spindle speeders vary by type. For example, pneumatic speeders may require regular air supply checks and lubrication, while digitally controlled models might need software updates and calibration. - Potential for Increased Load
Spindle-driven speeders can place additional load on the spindle, potentially accelerating wear. Ensuring your spindle can handle the increased load is essential to avoid premature failure. - Vibration and Alignment Issues
Improper installation or use of spindle speeders can cause vibration and alignment problems, affecting both spindle longevity and workpiece quality. Following proper installation guidelines is critical. - Contamination Risks
High-speed operations can produce more dust and fine particles, which can lead to contamination issues with spindle bearings and other components. Adequate dust collection and filtration systems are necessary to prevent these risks.
How Much Do Spindle Speeders Cost?
Speeder costs can vary depending on the type and complexity. Basic models can be relatively affordable, while advanced or specialized speeders, such as those used in aerospace or automotive industries, can be more expensive.
Key cost factors include:
Model and Features
Prices range from lower-cost basic models to higher-end versions with advanced features like digital controls or specialized applications.
Brand and Quality
High-quality speeders from reputable brands typically cost more due to better durability and performance.
Additional Equipment
Extra costs may arise from necessary adapters or control units, especially for electronically controlled models.
While generally more affordable than new high-speed machinery, it’s important to consider both the initial and potential ongoing costs when evaluating spindle speeders.
How to Install a Spindle Speeder
Installing a speeder requires careful attention to ensure proper functionality and safety:
- Check for Compatibility
Carefully read the manufacturer’s guide. Confirm that the spindle speeder is compatible with the machine’s spindle type and size, ensuring the machine can safely handle the increased speed and load. - Ensure Proper Mounting
Attach the speeder using the appropriate adapters or mounting kits. Proper alignment is crucial to prevent vibration and ensure smooth operation. - Establish Connections
For pneumatic speeders, connect a stable and sufficient air supply. For electronically controlled models, ensure all necessary electrical connections and control units are properly installed. - Conduct Initial Testing
Begin by running the machine at low speeds to identify any potential issues such as misalignment or vibration. Gradually increase the speed, monitoring the machine’s performance and making necessary adjustments. - Perform Evaluation and Maintenance
Regularly assess both the speeder and the spindle to which it’s mounted. If issues arise, a professional evaluation can determine the best course of action.
Proper installation and regular maintenance are crucial for maximizing the performance and lifespan of a spindle speeder. Seeking professional assistance can help ensure the equipment operates safely.
Keep Your Spindle Speeders in Top Shape with Northland Tool
Enhancing your machining setup with spindle speeders can bring significant benefits, such as improved speed and precision. But like any machinery, they require regular maintenance and occasional repairs.
If you’re experiencing any issues or simply want to ensure your equipment is in optimal condition, Northland Tool can evaluate and repair your spindle speeders. Sometimes, what seems like a speeder issue might actually be a problem with the spindle itself. Sending your equipment to Northland Tool will provide clarity and a path forward that ensures the integrity of your operations.
