What Is a Spindle Taper? Know Your Spindle Connections

A taper refers to a gradual reduction in the diameter or cross-section of a part. This shape often resembles a cone, where the cross-section narrows toward one end. In machining, a taper on a tool holder means it transitions smoothly from a wider end to a narrower end.

In machining, a machine taper is used to secure tool holders and cutting tools to the spindle head of various machines, such as lathes and milling machines. The male taper fits into the machine head, making it easier for technicians to change tools quickly and accurately. The friction created by the tapered interface eliminates the need for a chuck, which typically requires time-consuming manual adjustments using a screw mechanism. This streamlined process enhances efficiency and precision in machining operations.

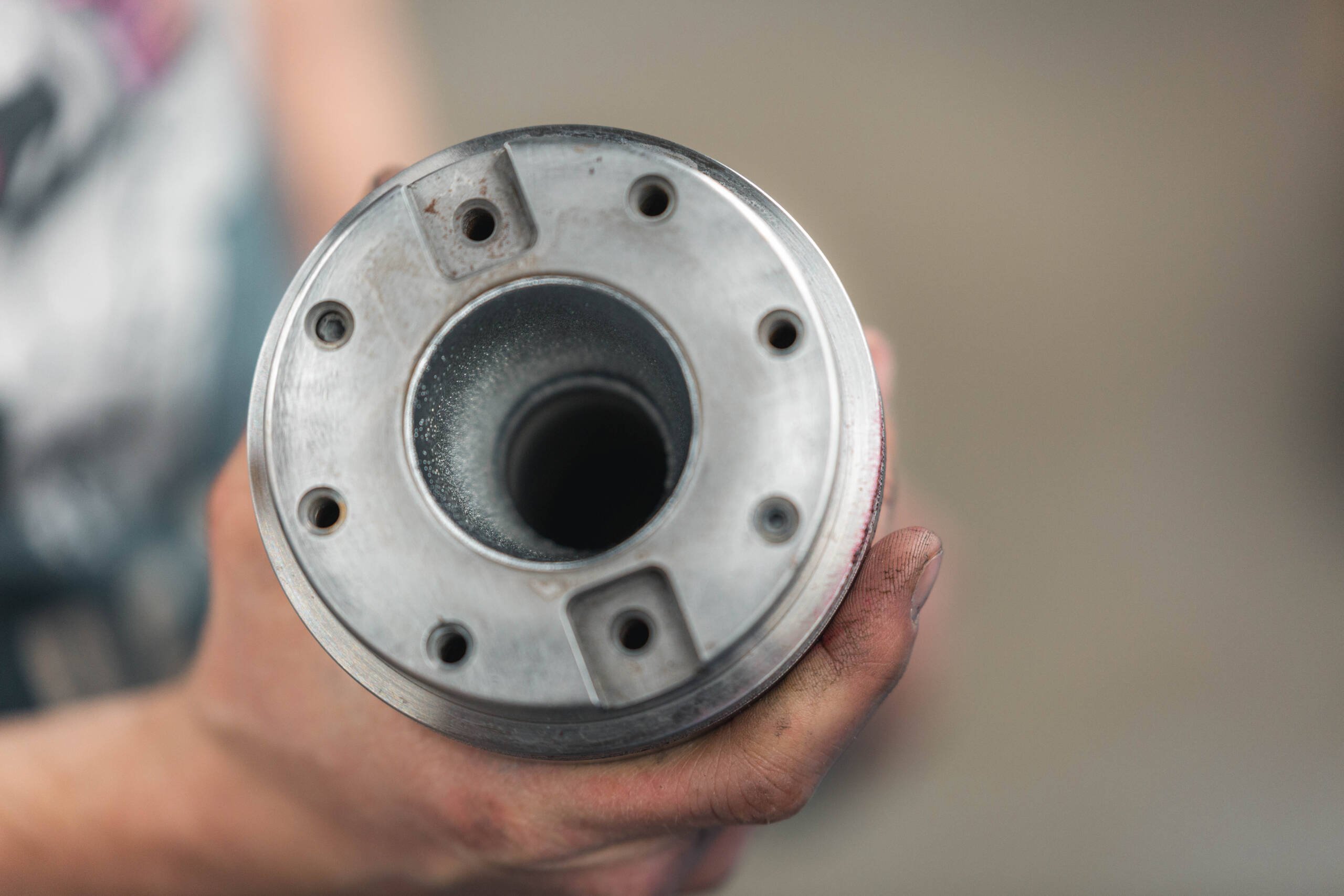

A spindle taper is a conical area inside the spindle of a machine tool where the tool holder or cutting tool is inserted. This tapered section holds the tool securely to guarantee precise alignment within the spindle.

In machining, the accuracy and performance of tools are heavily dependent on the condition of the spindle taper. A spindle taper that is clean, undamaged, and properly aligned helps to maintain high cutting accuracy and achieve a smooth surface finish on the workpiece. On the other hand, a dirty, damaged, or misaligned spindle taper can lead to poor tool performance, reduced machining accuracy, and unsatisfactory surface finishes.

Spindle tapers are designed to ensure high precision and stability in machining operations. They serve all of the following purposes:

• Securing cutting tools
• Providing precision in machining
• Facilitating quick tool changes
• Providing stability and rigidity
• Allowing for efficient power transmission
• Reducing vibration and chatter

Additionally, spindle tapers are used in the following types of machining equipment to ensure efficient and precise tool holding:

• Milling machines, which use spindle tapers to hold and align rotary cutters securely.
• Lathes, which use spindle tapers to secure and accurately position rotating parts.

Understanding the different types of spindle tapers is crucial for selecting the right one for your machining needs. Here’s a look at some of the most common spindle tapers.

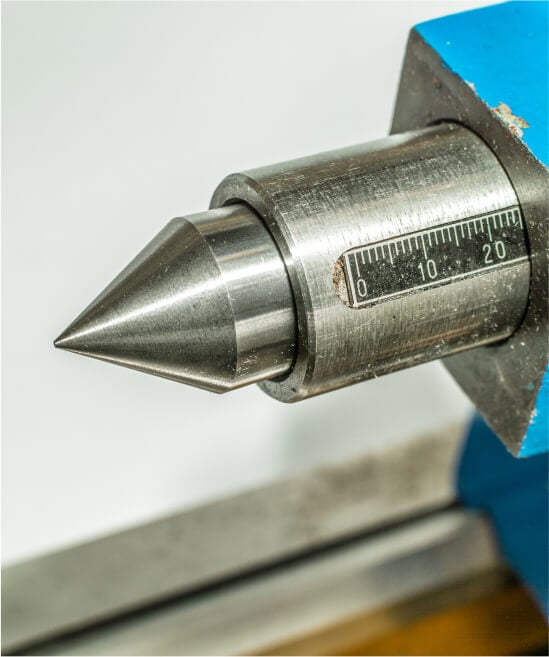

Morse Taper The Morse taper, developed by Stephen A. Morse in the mid-19th century, is widely used in drill presses, lathes, and milling machines. Its self-holding design means the tool remains firmly in place without needing a drawbar, making it ideal for light- to medium-duty applications where quick tool changes are necessary. Morse tapers are available in eight sizes, from MT0 to MT7.

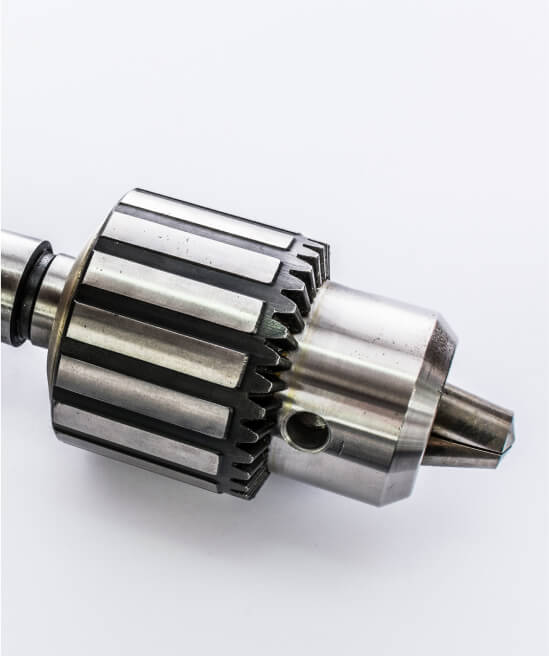

Jacobs Taper Jacobs tapers are used for securing drill chucks to arbors. Their self-holding feature eliminates the need for a drawbar, making them suitable for light-duty applications. Jacobs tapers come in various sizes, including #0, #1, #2, #2 Short, #2½, #3, #4, #5, #6, and #33. They are designed to maintain friction and secure attachment, ensuring precision in drilling operations.

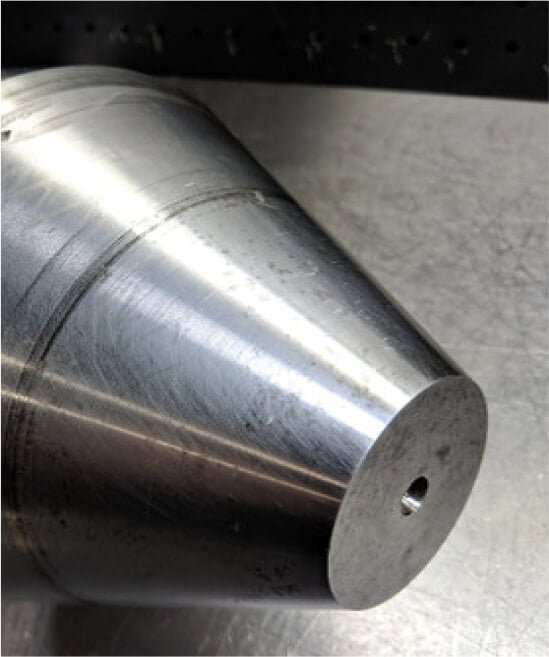

Jarno Taper Named after Brown and Sharpe Manufacturing, Jarno tapers have a taper ratio of 0.60 inches per foot and are commonly found in lathe headstocks and tailstocks, as well as in profiling and die-sinking machines. Jarno tapers are available in 19 sizes, with larger end diameters ranging from 0.25 to 2.50 inches and smaller end diameters ranging from 0.20 to 2.00 inches.

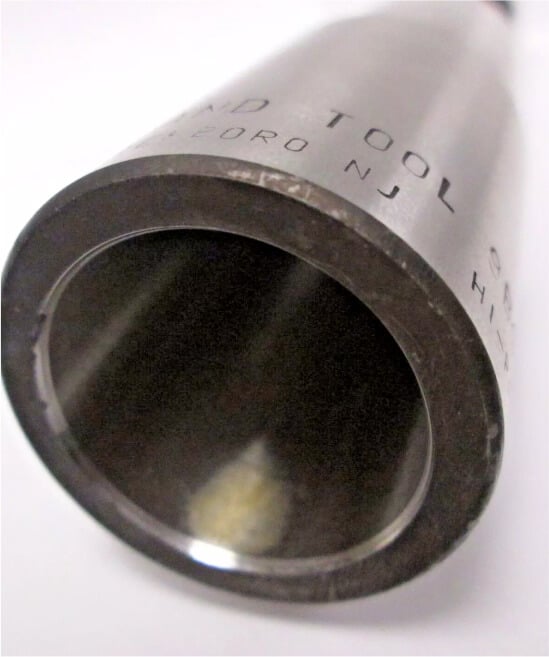

Brown and Sharpe Taper Brown and Sharpe tapers are commonly used in older tooling machines for drill bits, reamers, end mill holders, and collets. They come in a range of sizes, with large end diameters starting from 0.250 inches up to 3.4271 inches. The taper per foot varies, with some sizes having a taper per foot of 0.50 inches, while others have smaller variations.

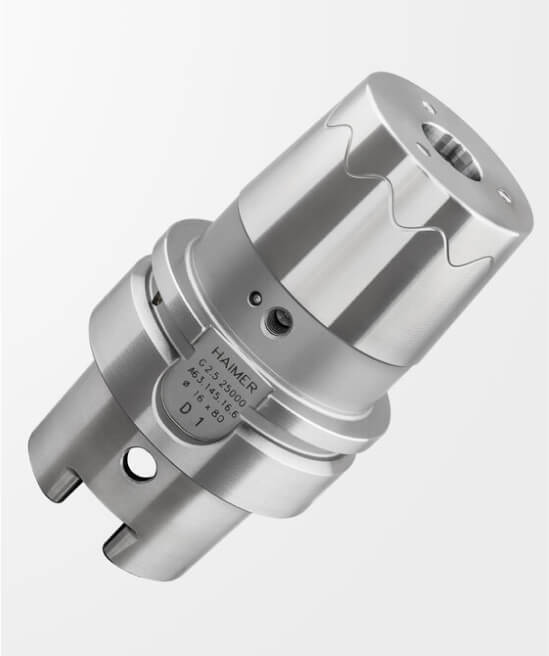

HSK Taper HSK (Hollow Shank) taper tools are designed for high-speed and high-precision machining applications. Featuring a hollow shank and a 10:1 taper ratio, HSK tapers offer dual contact between the taper and face, enhancing stability and precision. HSK tool standardizations include ISO 12164 and DIN 69893, all of which lack retention knobs and rely on high-precision balancing, making them ideal for operations with exceptionally high rotation speeds. There are multiple types of HSK tooling, tailored to different machining tasks, but the taper dimensions remain consistent across these variations.

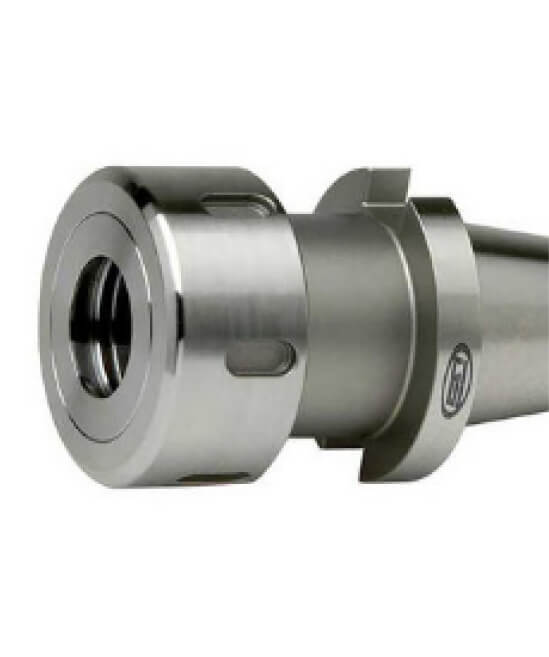

NMTB Taper The NMTB taper, established by the National Machine Tool Builders’ Association in 1927, is designed for heavy-duty applications. It has a taper ratio of 3.50 inches per foot and includes a single flange with two keyways. NMTB tapers are used with drawbars to secure the tapered shank tightly in the tool shank of power tool spindles.

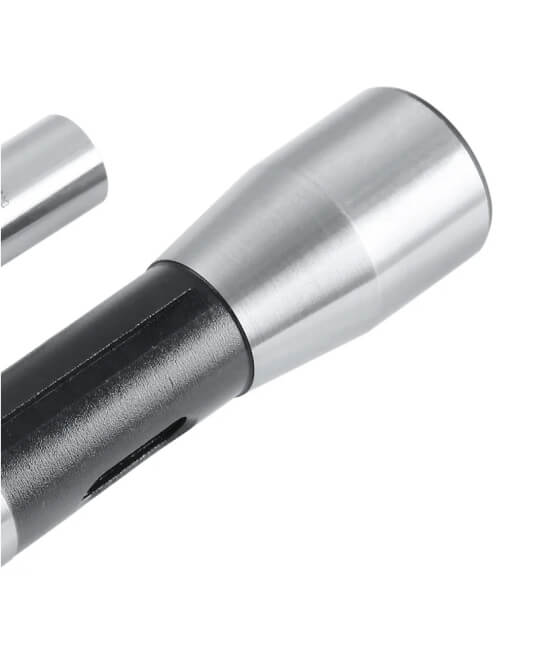

R8 Taper The R8 taper, developed by Bridgeport Machines, Inc., is used in milling machines. It requires a drawbar to hold tools in place. The R8 taper is specified as 3.5 inches per foot, approximately 16.26 degrees.

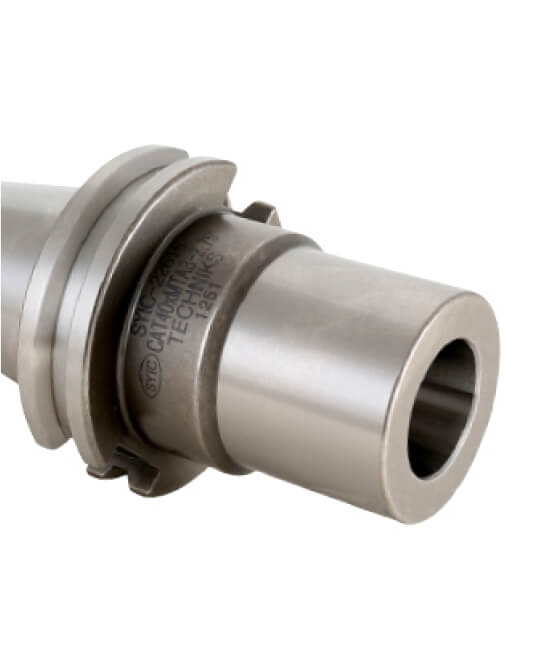

CAT Taper CAT (Caterpillar) tapers are widely used in CNC machining centers. They are known for their durability and strength, making them suitable for heavy-duty applications. CAT tapers come in various sizes, such as CAT30, 35, 40, 45, 50 and 60, each designed to fit specific machining requirements.

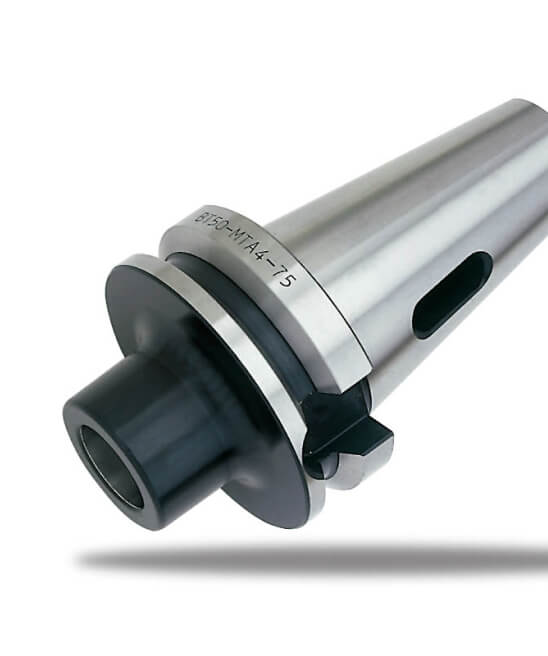

BT Taper BT (British tapers) are similar to CAT tapers but have symmetrical flange and body dimensions, enabling them to be used in both manual and automatic tool changers. They are available in sizes like BT30, BT40, and BT50 and are commonly used in CNC machines.

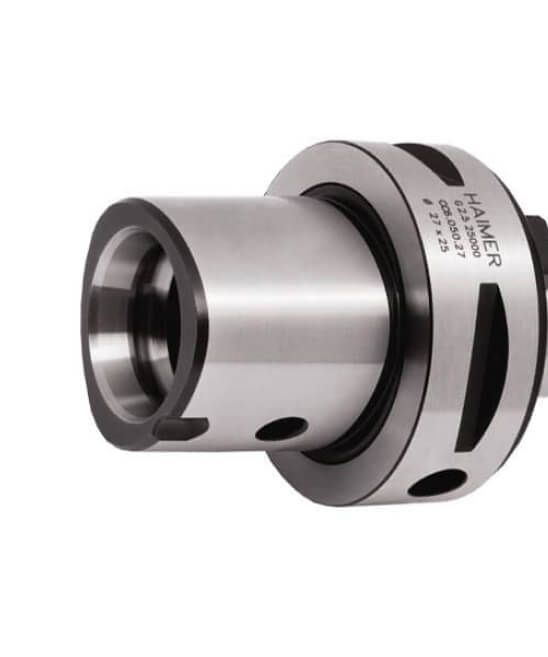

Capto Taper Capto tapers, developed by Sandvik Coromant, feature a unique polygonal design that provides both taper and face contact, enhancing stability and precision. This dual-contact system is ideal for high-torque, heavy-duty applications and allows for quick tool changes across various machines.

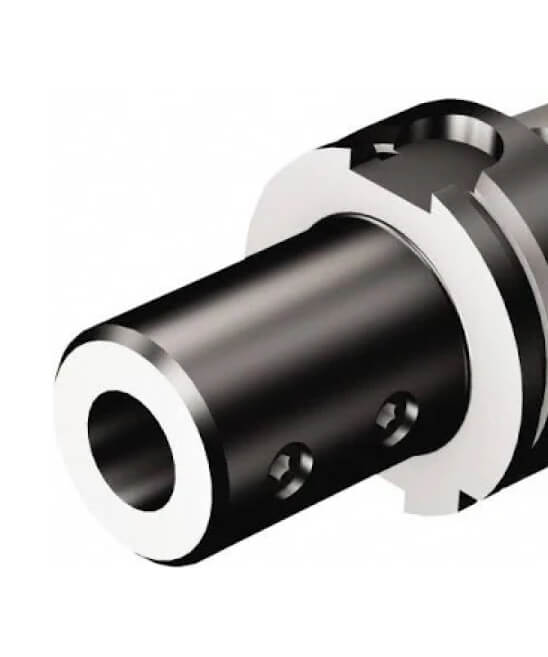

KM Taper KM tapers, developed by Kennametal, offer a self-centering, self-locking design with dual contact between the taper and face. They are used in high-torque, heavy-duty applications, providing strong tool retention and precision in turning, milling, and drilling operations.

Comparative Analysis of Spindle Taper Types

Here’s a quick-glance comparison of the different types of spindle tapers and their key features.

Selecting the appropriate spindle taper for your machining needs involves several key considerations. Professional machinists should evaluate the following factors:

1. Machine type: Different machines require specific types of tapers. For example, milling machines typically use CAT or HSK tapers, while lathes might use Morse tapers. Make sure the chosen taper is compatible with the machine type to avoid inefficiencies and potential damage.
2. Specific applications: The work being performed dictates the taper needed. High-speed operations may benefit from HSK tapers, while heavy-duty tasks might require CAT or BT tapers. Select the taper that best suits the specific machining application and workpiece material to avoid costly errors.
3. Precision requirements: The desired level of precision can influence the choice of taper. HSK tapers are known for their high precision and stability, making them suitable for applications requiring tight tolerances.

Selecting the right spindle taper requires careful consideration of your machining needs, and professional advice is crucial. Consult with experts to ensure you choose the taper that best aligns with the factors above to avoid pricey mistakes and maximize tool performance.

Regular maintenance of spindle tapers is crucial in professional machining settings. Proper upkeep, including spindle taper grinding, ensures that tools remain securely held and accurately positioned, maintaining the high precision required for quality machining. Neglecting maintenance can lead to decreased performance, increased wear on tools, and potential damage to the machine.

Several common issues can arise with spindle tapers, each requiring specific solutions to maintain optimal performance:

• Dirt and debris: Accumulation of dirt and debris can prevent proper seating of the taper, leading to inaccuracies in machining. Be sure to employ regular cleaning using specialized tools to remove build-up.
• Damage and wear: Over time, spindle tapers can become worn or damaged, causing misalignment and poor tool performance. Regular inspection and prompt damage repair are necessary to prevent further issues.
• Misalignment: If the spindle taper becomes misaligned, it can result in uneven tool wear and subpar machining quality. Realigning the spindle and ensuring it is correctly positioned can resolve this problem.

Northland Tool’s Advanced Capabilities

Northland Tool & Electronics specializes in precision spindle repair and rebuilding, drawing on over 45 years of experience. Our capabilities related to spindle tapers include the following:

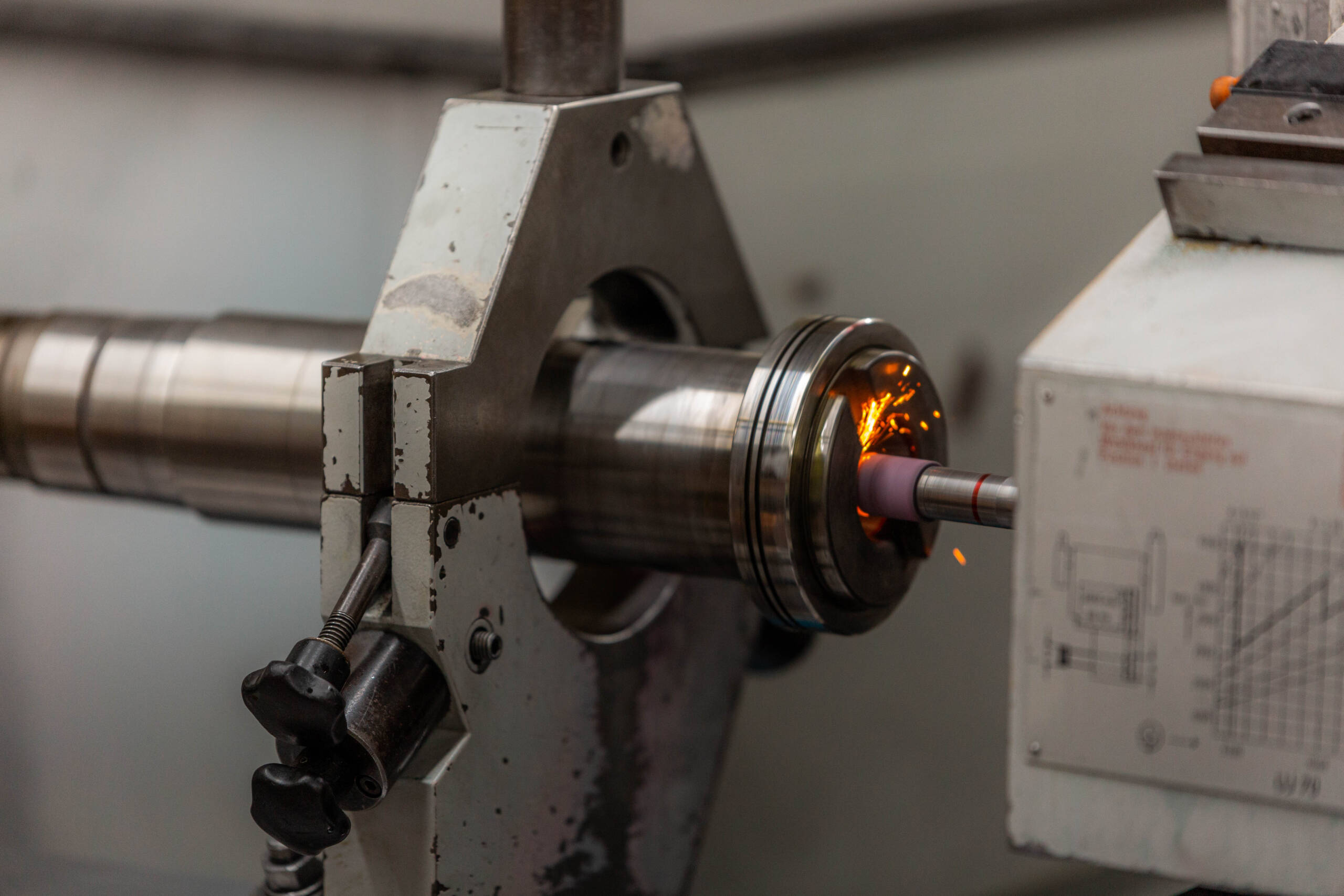

• Precision grinding: Northland Tool uses advanced cylindrical grinding machines to restore spindle tapers to their original specifications. Spindle taper grinding ensures accurate and reliable tool holding by maintaining the correct taper geometry.
• Air gauging: During taper repairs, air gauges are used to ensure proper tool contact and precision in the taper dimensions.
• Dynamic balancing and vibration analysis: These processes help the spindle to run smoothly, reducing the risk of imbalances that could affect the taper and overall spindle performance.
• Thorough cleaning and inspection: Every spindle undergoes a comprehensive cleaning to remove dirt and debris. Detailed inspections identify wear or damage that could affect the taper, allowing for precise repairs.

Regular maintenance and expert repairs ensure that spindle tapers function optimally, reducing downtime and enhancing productivity. For professional machinists seeking top-notch spindle repair and consultation, Northland Tool offers unparalleled expertise and service. Reach out today to get a quote.

Can you advise how to calculate the taper ratio?

The taper ratio is calculated using the formula:

Taper Ratio= D-d / L -OR- (D minus d) divided by L

where D is the large diameter, d is the small diameter, and L is the length of the taper.

Is taper only for cylindrical objects?

No, a taper can be applied to non-cylindrical objects as well. For example, a Capto taper can be created on a square bar by reducing its cross-section gradually.

Is tapering only for design purposes?

No, tapers are used for both functional and design purposes. Functionally, they help in precise alignment and secure tool holding in machining. Aesthetically, they can be used in design elements like columns.
