Housing, Shaft, and Bearing Fits for Precision Spindles

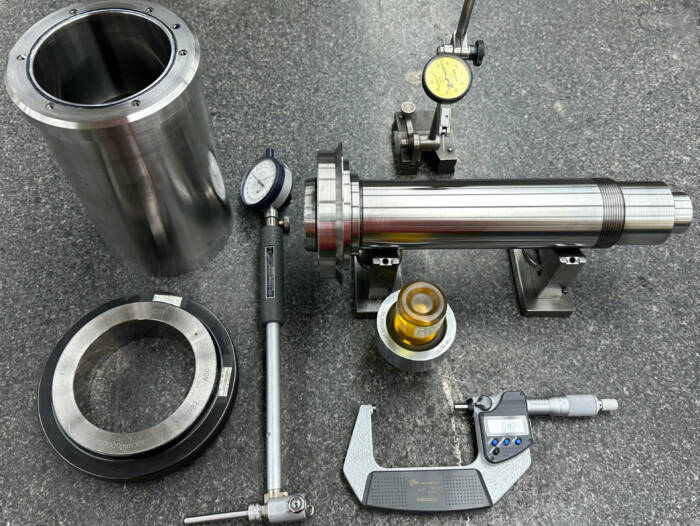

The success of any precision machinery relies heavily on various intricate components working seamlessly in unison. Among these components, machine spindle shaft, housing, and bearing fits play a crucial role in ensuring optimal output and system longevity. Here, we discuss the significance of different types of bearing, shaft, and housing fits and how they affect the performance of precision spindles.

Why Does Bearing Fit Matter?

Proper shaft and housing fit is essential for the longevity and performance of spindle bearings, especially when it comes to minimizing the risk of spindle failure. Failure to achieve the correct fit can lead to increased heat, premature failure, and poor parts quality. Correct fit is not only essential for the health of the bearings but also ensures the machine consistently produces high-quality parts.

The following are the most common errors attributed to improper spindle shaft and housing fits, as well as possible consequences.

Loose Shaft Fit
When the shaft fit is too loose, several problems can arise:

  • Bearing creep (fretting): Unintended movement of a bearing within its mounting place.
  • Inconsistent preload: Inner races may shift from the centerline, affecting the preload.
  • Lack of rigidity: This can lead to part quality issues.
  • Inner race liftoff: Bearings may spin on the shaft, damaging it.
  • Shaft misalignment: If the shaft is not being “held” on center, it can create runout and imbalance.
  • Damage to other bearings: Loose fits can damage other bearings in the system by not holding the shaft concentric.
  • Vibration: Excessive vibration can damage both parts and equipment.

Loose Housing Fit
When the housing fit is too loose, it can lead to issues such as:

  • Misalignment: The entire assembly, including the shaft and bearings, can shift within the bore.
  • Vibration: Excessive vibration can damage both parts and equipment.
  • Fretting: As with loose shaft fit, the outer races can spin in the bore.
  • Lack of rigidity: This may lead to part quality issues.

Shaft Fit Is Too Tight
If the shaft fit is too tight, it can lead to various problems:

  • Reduced efficiency and lifespan: Worn and damaged bearings will drastically reduce equipment performance and longevity.
  • Increased operating temperatures: Rising temperatures are always a concern in machining; a too-tight shaft can exacerbate this issue.
  • Contact angle shift: This may result in changes in preload and rigidity.
    Distortion of ball path surface: Surface distortion can cause premature bearing failure.
  • Increased ambient noise: Excessive noise usually indicates vibration, which can pose a significant risk to equipment and parts. At the very least, increased noise can impede communication and negatively affect operators’ hearing over time.

Housing Fit Is Too Tight
When the housing fit is too tight, issues may include:

  • Increased heat generation: Excessive temperatures can shorten bearing life.
  • Inability to function: A “slide fit” design may not function as intended.
  • Preload changes: Tight housing fits can affect spindle preload.

Correcting a poor fit can be challenging, often requiring a complete teardown of the spindle to access both the shaft and housing. It’s generally difficult to fix in the field and almost always compromises the integrity of the bearings.

Types of Shaft and Housing Fits

The type of shaft and housing fit depends on the application. The following are the most common types of fits for precision spindles:

  • Fixed housing
  • Slide or float housing
  • Small interference shaft
  • Large interference shaft
  • Slide shaft

There are many factors to consider when selecting shaft and housing fits for a specific application, including:

  • Whether the inner ring is rotating or not
  • What type of load the application is producing and its direction
  • Bearing bore and outside diameter
  • The application itself
  • Maximum speed
  • Heat dissipation efficiency and direction
  • Bearing orientation
  • Preload
  • Target dynamic load
  • Expected physical cutting loads
  • Lubrication

Bearing and housing materials are also relevant when determining correct fits. For example, aluminum will expand more than steel will, which will require different fits, even if all other variables remain the same

Types of Spindle Housing Fits

Clearance fit
Also known as a “slip fit,” this fit allows for clearance between the bearing bore and outer ring. It’s generally easy to install, but if too loose, it can lead to bearing creep, increased vibration and temperatures, and premature failure.

Interference fit
Often referred to as a locked fit, this is the opposite of a clearance fit. It requires that the outer race be larger than the housing bore. Interference between the bearing ring and its mating part generally makes assembly more challenging (using thermal expansion may help).

Transition fit
This fit falls somewhere between clearance and interference, with the resulting fit depending on the tolerances of two points of contact: either the bearing bore and the shaft or the housing and bearing O.D.

Types of Spindle Shaft Fits

The housing fit is sometimes different from the shaft fit — one may require an interference fit (usually the rotating ring), while the other requires clearance. The rotating ring requires an interference fit because, when applying the load to a looser fit, there would be slippage and a loss of efficiency. Eventually, this would cause surface damage or fretting corrosion.

Since most general applications include inner ring rotation and a constant radial load, an interference fit is recommended between the shaft and bearing bore. The level of interference can increase for higher speeds or heavier loads.

How Bearing Fit Affects Preload

Bearing fits have a direct impact on preload. When determining bearing fit and spindle preload, take the following into account:

  • Inner or outer ring rotation
  • Type of load
  • Ease of bearing installation or removal
  • Amount of radial and axial load
  • Whether a chiller system is in place
  • Max RPM
  • Required rigidity

Bearing Fits for High RPM

Bearing speed (DmN or Dn) contributes significantly to the required fits.

Typically, the fits are manipulated to accommodate higher shaft interference while lowering static preload, achieving the target high-speed dynamic load and avoiding inner race lift off due to centrifugal force. Bore fits are then adjusted to compensate for the extra “stretch” experienced by the bearing.

Different Styles of Bearings & Fit Requirements

The type of bearing used also influences fit requirements. Besides ball bearings, other common spindle bearing styles include rollers and cup and cone bearings, each with specific fit considerations.

Rollers: Preload in roller bearings is determined by the fits of the housing, shaft, and bearing dimensions. There are two types of rollers typically used in precision spindles:

  • Straight bore: In this case the mounted preload or clearance is determined by the housing fit, shaft fit, and the bearings dimensions. The only way to change the preload is to change the journal or bore.
  • Tapered bore: Here, the roller is set a precalculated distance up a tapered journal to stretch the inner race and therefore take up the clearance until desired mounted preload is reached. This adjustability allows for more variation in the fits.

Cup and Cone: These bearings, though less common in precision spindles, offer slightly more flexibility when it comes to fit. Adjustability is relatively easy, but it can compromise precision.

Achieving the right fits for a machine spindle bearings, shaft, and housing is a complex and critical aspect of spindle design and operation. The proper fit ensures longevity, efficiency, and peak performance of precision spindles — vital components in countless industries.
