Anca TG7 Spindle Repair

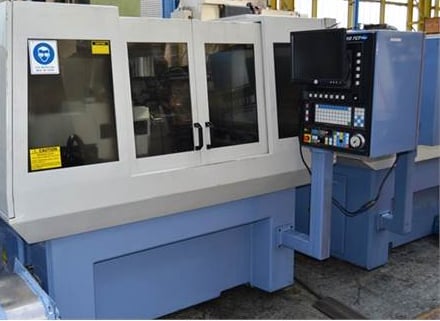

This is one type of Anca spindle we repair for many of our tool and cutter manufacturing accounts. The most common cause of failure is contamination. We pay special attention to the front labyrinth on the spindle to make sure it is giving you the best contamination protection possible.

CHALLENGE

This Anca TG7 spindle arrived at Northland Tool and Electronics for a full breakdown and evaluation. Upon inspection, we noted that one screw hole in the front cover had cosmetic damage, but we will use as is.
The wheel hub OD taper was measured and had >7µm runout and the hub retention threads were severely worn with a loose fit. The 38mm drive pulley journal was fretted undersized -20/-48µm with >10µm runout. Lastly, the drive pulley belt guard was bent with one broken tack weld. No other dimensional deviations were noted for this repair.

SOLUTION

The following actions were performed on this Anca TG7 spindle:

Clean, inspect overall dimensions
Rework the wheel hub retention threads and the drive pulley belt guard
Grind, chrome plate, and finish grind the 38mm drive pulley journal
Kiss grind the wheel hub OD taper
Replace all bearings, seals, o-rings, and assembly screws

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Rotating parts laid out for evlauation

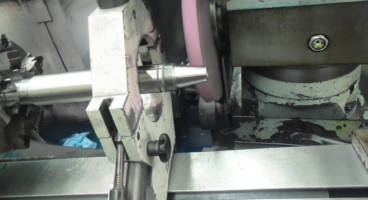

Wheel hub being finish ground
