Brown & Sharpe 814U Spindle Repair

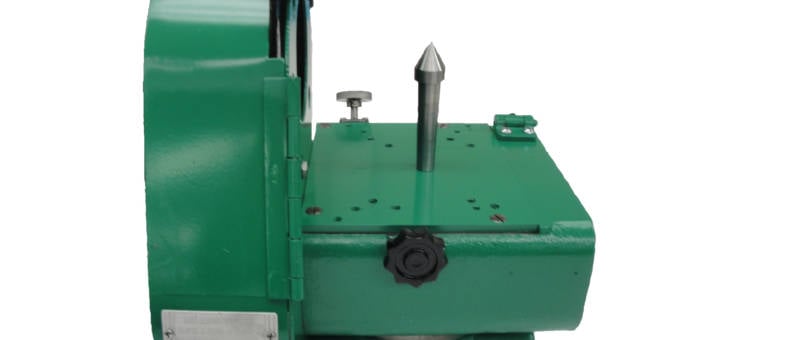

The Brown & Sharpe 814U is a manual OD grinding machine. It comes fitted with a grease lubricated and pulley driven spindle capable of running up to 540 rpm.

CHALLENGE

When this Brown & Sharpe 814U spindle arrived at Northland Tool and Electronics we completed a full breakdown and evaluation. First thing we noted during disassembly was that the spindle shaft stop locking pin was worn and was not allowing the main shaft to turn freely. The main shaft locking pin stop holes were damaged as well. The front and rear seals were worn out and there was light wear on the shaft where they locate. Lastly, the shaft taper was galled and had 7-9µ runout.

SOLUTION

The following actions were performed on this Brown & Sharpe 814U spindle:

Clean, inspect overall dimensions
Repair locking pin assembly and main shaft locking pin stop holes
Grind, chrome plate, and finish grind the shaft taper
Replace bearings, seals, drive belt, and assembly screws

RESULT

After reassembly of all components, adjusting bearing preload, and undergoing break-in and testing procedures, this spindle passed our final quality inspection before being returned to our customer with a 1-year warranty.

DETAILED CAUSE OF FAILURE

Rotating parts laid out for evaluation
Main shaft locking pin stop hole damage
