Catastrophic bearing failure was the main cause of this spindle malfunction Continue reading to learn how Northland Tool performed this repair and converted a Weiss GHK 176239 spindle from grease-injected to permanent grease lubrication……Read More

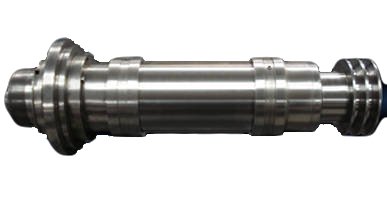

BROWN AND SHARPE SPINDLE REPAIR
With over 40 years of spindle rebuilding experience, the team at Northland Tool & Electronics can rebuild a wide range of spindles with the precision required to do the job right.
Brown and Sharpe has been a workhorse of the industry for many years. With a robust design, these spindles are not prone to premature failure. The majority of Brown and Sharpe spindles we repair have failed only because they have reached the end of their bearings’ life expectancy.
Northland Tool & Electronics rebuilds Brown and Sharpe spindles back to OEM specifications so you can expect the same reliable output from your spindle as if it were brand new.
Common Brown and Sharpe Issues
From coolant contamination to bearing failure to crashes, Northland knows that there are a variety of issues that can affect the performance of your spindle, and we’re prepared to handle them all. Some common issues that Brown and Sharpe spindles encounter include:
- Bearing reach the end of their duty cycle
- Damage from crash
- Excessive belt tension
- Pulley damage from tool change
- Worn housing bearing bores
- Worn tooling interface
- Worn shaft bearing journals
Spindle Repair Process
Quote & Scheduling
Assembly & Delivery
- Upon arrival, we log every spindle into our production tracking software system. Any issues associated with transit are noted.
- Our technicians carefully break down the spindle into its component parts, note their general condition as well as specific damage and perform a full dimensional inspection to identify excessive wear.
- Our production manager performs a second evaluation, during which he/she will identify the mode of failure, consult with the head of our grinding and machining department and determine recommendations for future preventative measures.
- Our purchasing department sources all replacement part costs, determines lead times and generates a quote.
- Our team gives the quote a final check and communicates it to the customer for approval.
- Following customer approval, we schedule production and order the parts needed.
- Once we receive the parts, we carefully clean them and complete any necessary grinding or machining operations.
- Our highly trained technicians assemble all spindle components and perform a rigorous break-in process. This may include dynamic balancing and thermal and vibration analysis.
- After our inspectors perform a final quality control check, our shipping department carefully boxes the spindle and returns it to the customer.
1 Year Warranty
Our competitive 1 Year Warranty policy ensures that proper workmanship and parts free of defect are used in the repairing or rebuilding of every spindle. The warranty begins as soon as the repaired spindle is shipped from Northland Tool, and is valid for a period of 12 months thereafter. We will replace any parts that prove to be defective under normal use and correct any improper workmanship at no charge to the customer. Please see our full warranty terms for more details.
In this helpful guide to spindle bearing preload, Northland Tool & Electronics will answer all the basic questions about your spindle bearing preload calculations.Read More
